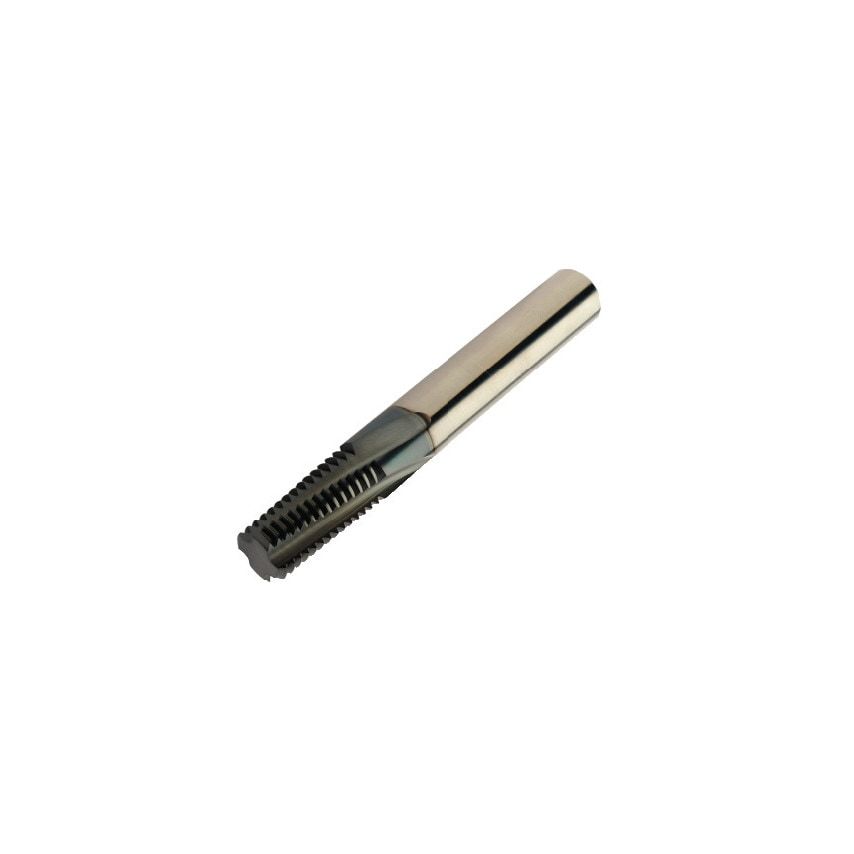

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| ISO Cutting Tool Material | Coated WC or Cermet |
| Material | Solid Carbide |
| Maximum Depth of Cut | 10.72mm |
| Rotational Speed Maximum | 80000 1/min |
| Standards Met | COROMANT |
| Body Diameter | 0.24in |
| Thread Pitch | 0.8mm |
| Grade | 1630 |
| Shank Type | Cylindrical |
| Coolant Entry Style | 1 |
| Maximum Cutting Diameter | 6mm |
| MFR Part No. | 26304506 |
| Coating Type | TiAlN |
| Thread Type | Internal |
| Cutting Diameter | 6mm |
| Connection Diameter | 15.88mm |
| CoroPak | 12.2 |
| Countersink Angle | 90\u00b0 |
| Maximum Cutting Depth | 10.72mm |
| Through Hole Function Property | Yes |
| Coating Process Type | PVD |
| Unit Measured | Metric |
| Thread Form Type | M60 |
| Basic Standard Group | Coromant |
| Usable Length | 11.67mm |
| Finish/Coating | TiAlN |
