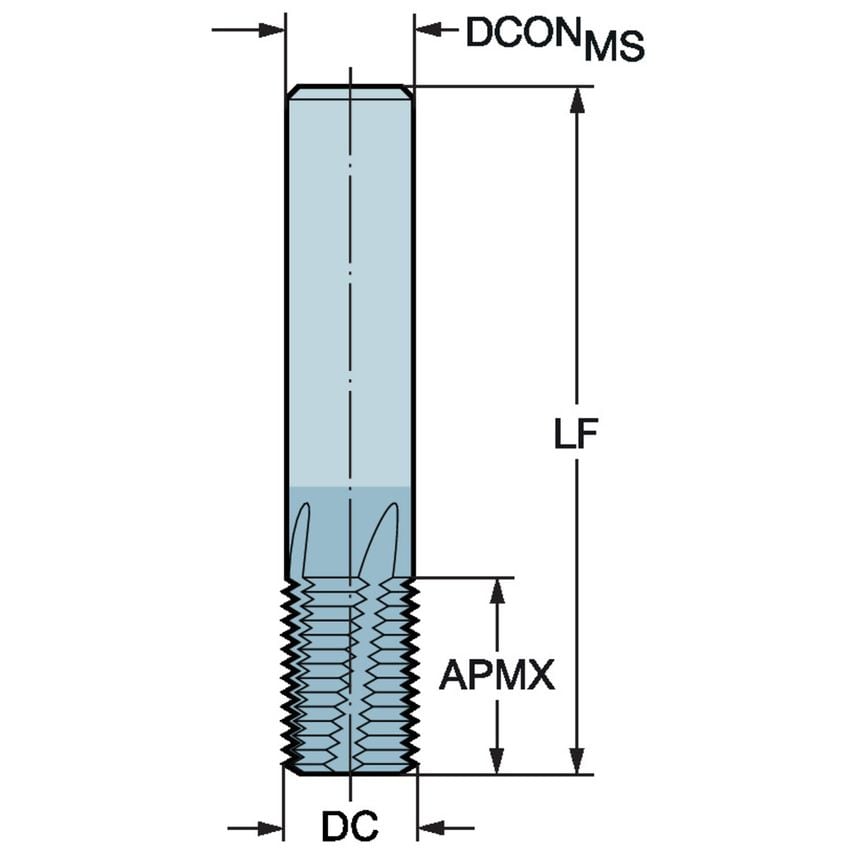

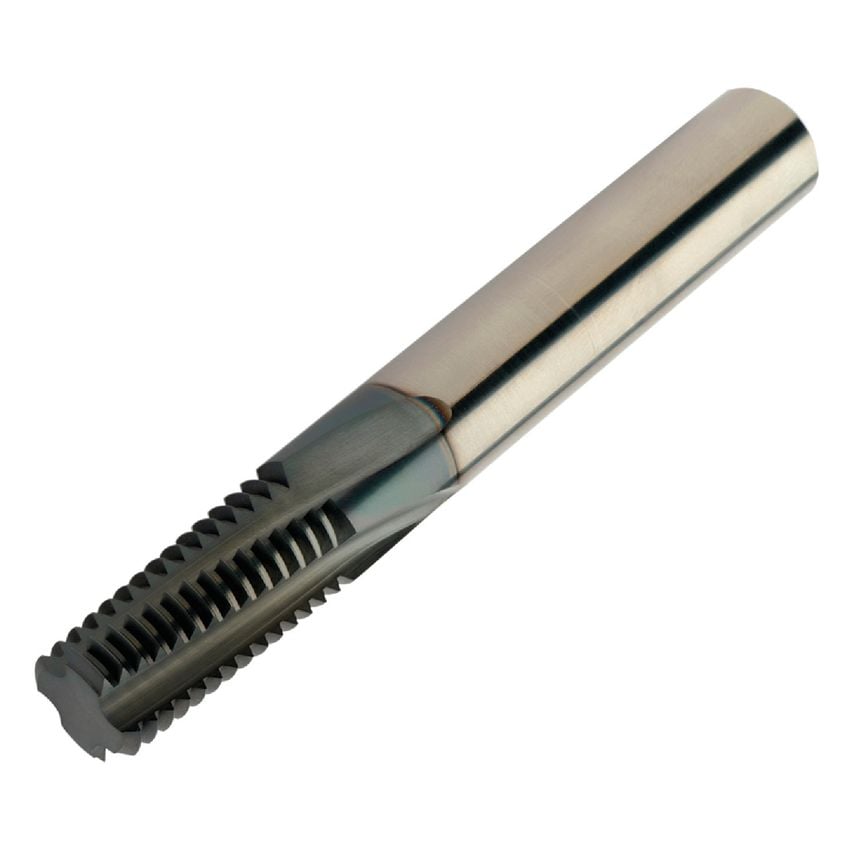

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Weight | 130g |
| Usable Length | 34mm |
| Maximum Cutting Depth | 34mm |
| Thread Form Type | M60 |
| Coating Type | TiAlN |
| Thread Pitch | 2mm |
| Functional Length | 92mm |
| Connection Diameter | 12mm |
| MFR Part No. | 11798614 |
| Coolant Entry Style | 1 |
| Cutting Diameter | 32mm |
| Through Hole Function Property | Yes |
| Coating Process Type | PVD |
| Grade | 1630 |
| Maximum Depth of Cut | 34mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Diameter | 12mm |
| Finish/Coating | PVD |
| Material | Solid Carbide |
| Thread Type | Internal |
| Basic Standard Group | Coromant |
| Standards Met | COROMANT |
| Rotational Speed Maximum | 80000 1/min |
| Unit Measured | Metric |
| Shank Type | Cylindrical |
| CoroPak | 4.2 |
