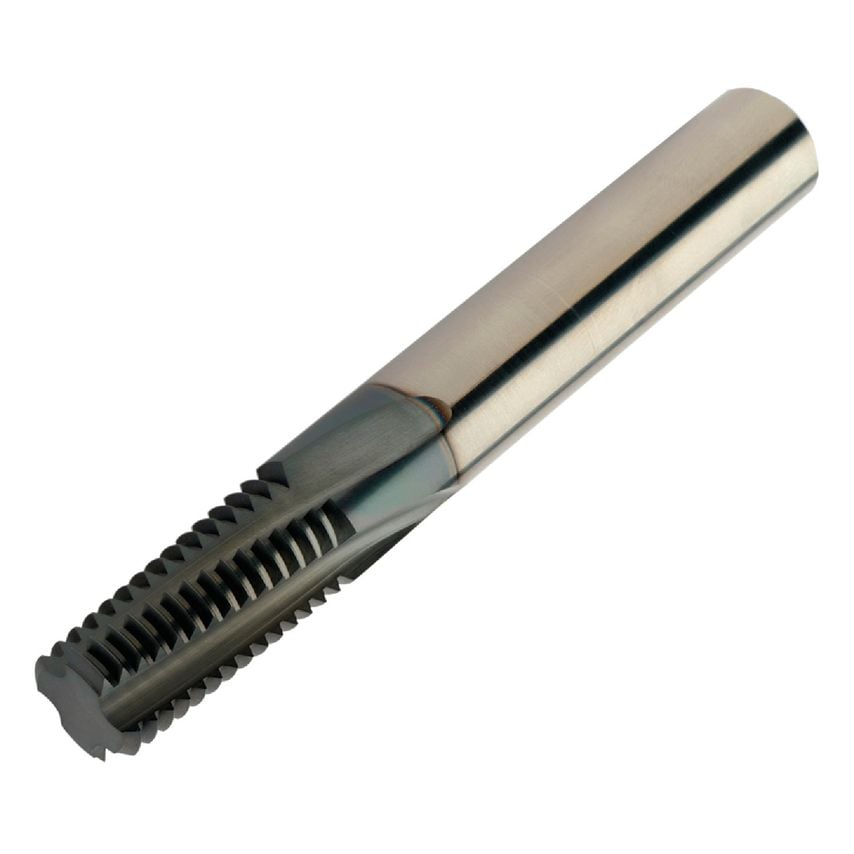

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

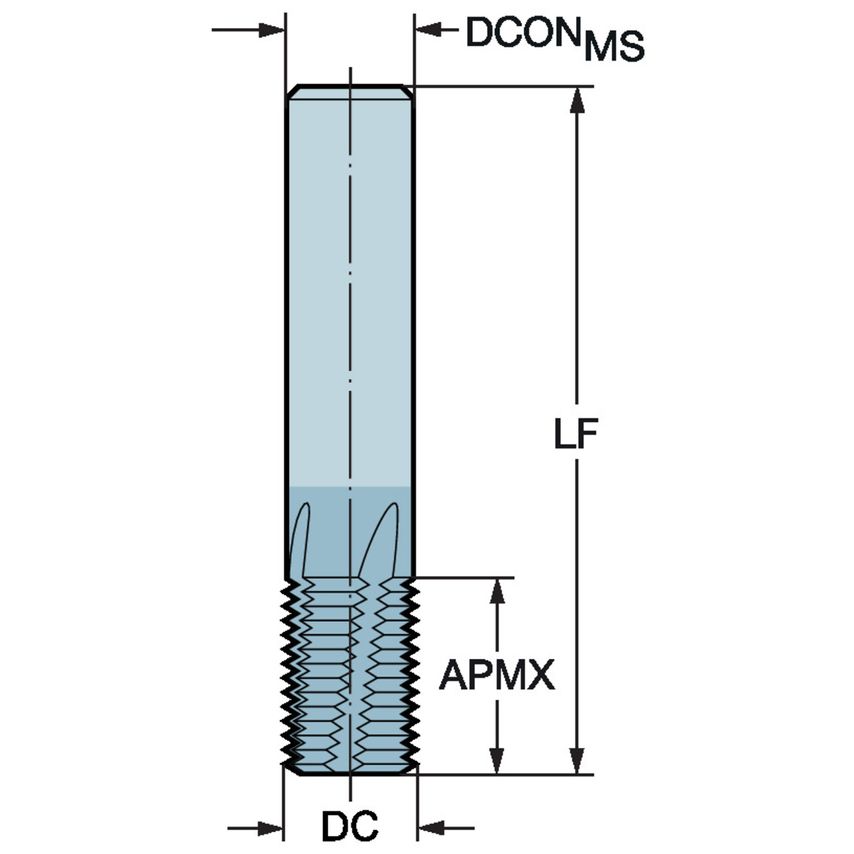

| Maximum Cutting Diameter | 10mm |
| Unit Measured | Metric |
| Maximum Cutting Depth | 30mm |
| Maximum Depth of Cut | 30mm |
| Rotational Speed Maximum | 80000 1/min |
| Thread Type | Internal |
| Coolant Entry Style | 1 |
| Usable Length | 30mm |
| Cutting Diameter | 20mm |
| CoroPak | 4.2 |
| Thread Form Type | M60 |
| Shank Type | Cylindrical |
| Coating Type | TiAlN |
| Connection Diameter | 22mm |
| Through Hole Function Property | Yes |
| Material | Carbide |
| Finish/Coating | TiAlN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | COROMANT |
| Coating Process Type | PVD |
| MFR Part No. | 11798603 |
| Basic Standard Group | Coromant |
| Functional Length | 83mm |
| Grade | 1630 |
| Thread Pitch | 2mm |
