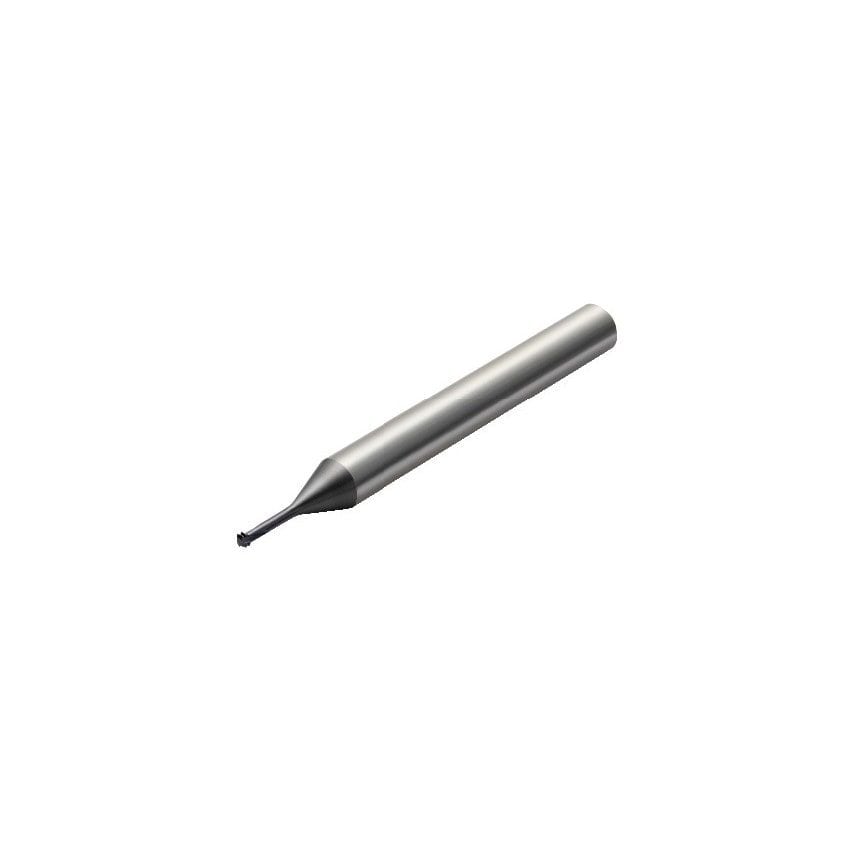

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coolant Entry Style | Without Coolant |
| Usable Length | 9.5mm |
| Material | Solid Carbide |
| Maximum Depth of Cut | 1.59mm |
| Threads Per Inch | 40 |
| Tool Cutting Edge Angle | 30\u00b0 |
| Thread Form Type | UN60 |
| MFR Part No. | 26416868 |
| Thread Type | Internal |
| CoroPak | 14.1 |
| Basic Standard Group | Coromant |
| Shank Type | Cylindrical |
| Standards Met | DIN |
| Maximum Cutting Depth | 1.59mm |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Finish/Coating | PVD |
| Grade | 1620 |
| Rotational Speed Maximum | 80000 1/min |
| Coating Type | AlCrN |
| Coating Process Type | PVD |
| Connection Diameter | 12.18mm |
