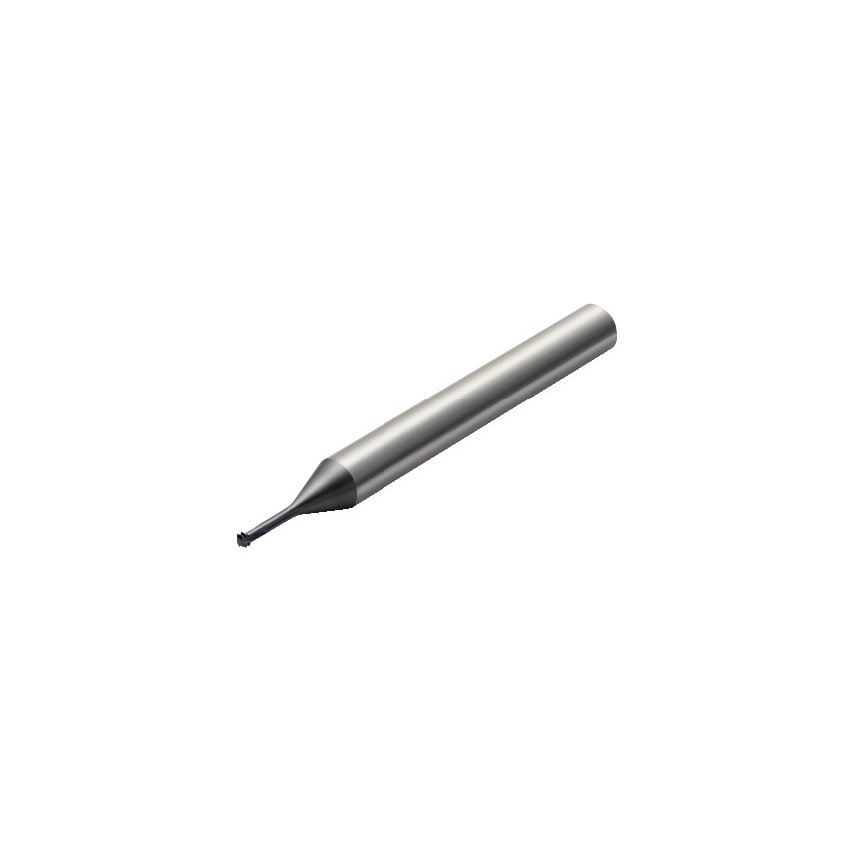

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| Coating Type | AlCrN |
| Thread Type | Internal |
| Maximum Depth of Cut | 1.36mm |
| Coolant Entry Style | Without Coolant |
| Thread Form Type | UN60 |
| Shank Type | Cylindrical |
| Grade | 1620 |
| Threads Per Inch | 28 |
| Basic Standard Group | Coromant |
| MFR Part No. | 26416879 |
| Standards Met | COROMANT |
| Rotational Speed Maximum | 80000 1/min |
| Coating Process Type | PVD |
| CoroPak | 14.1 |
| Unit Measured | Metric |
| Tool Cutting Edge Angle | 30\u00b0 |
| Body Diameter | 0.16in |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 1.36mm |
| Connection Diameter | 12.23mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Usable Length | 20.45mm |
