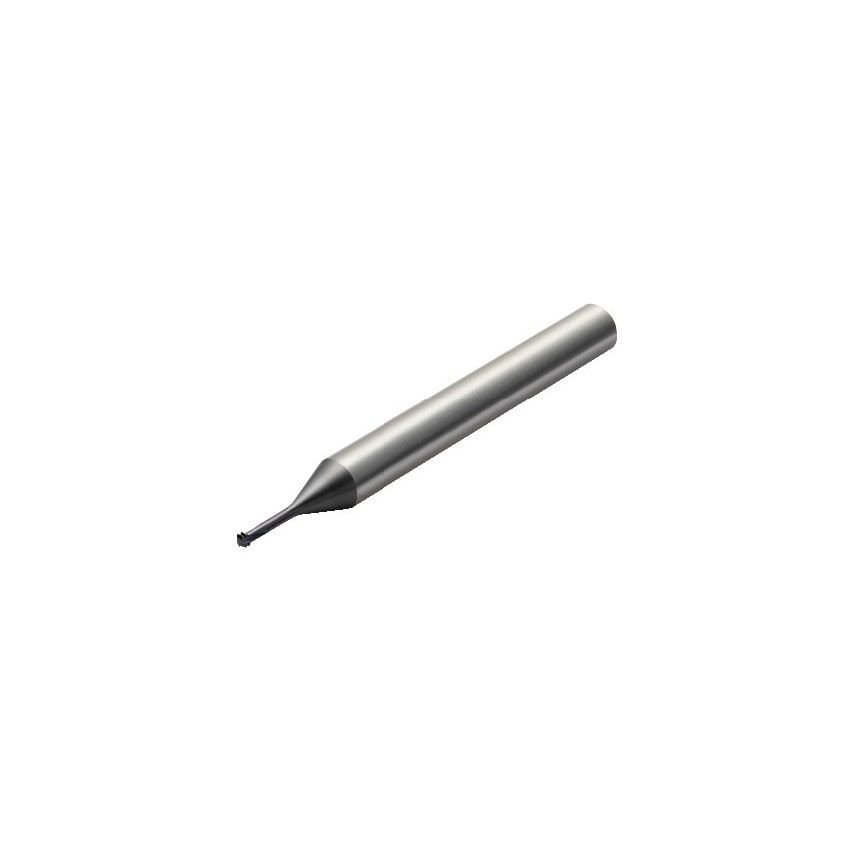

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Thread Type | Internal |
| Coating Process Type | PVD |
| Rotational Speed Maximum | 80000 1/min |
| Tool Cutting Edge Angle | 30\u00b0 |
| Coating Type | AlCrN |
| Usable Length | 15.7mm |
| Finish/Coating | AlCrN |
| Maximum Depth of Cut | 1.19mm |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Body Diameter | 0.11in |
| Material | Solid Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | 1620 |
| Maximum Cutting Depth | 1.19mm |
| Shank Type | Cylindrical |
| MFR Part No. | 26416878 |
| Basic Standard Group | Coromant |
| Threads Per Inch | 32 |
| CoroPak | 14.1 |
| Standards Met | COROMANT |
| Thread Form Type | UN60 |
| Connection Diameter | 6mm |
| Through Hole Function Property | Yes |
