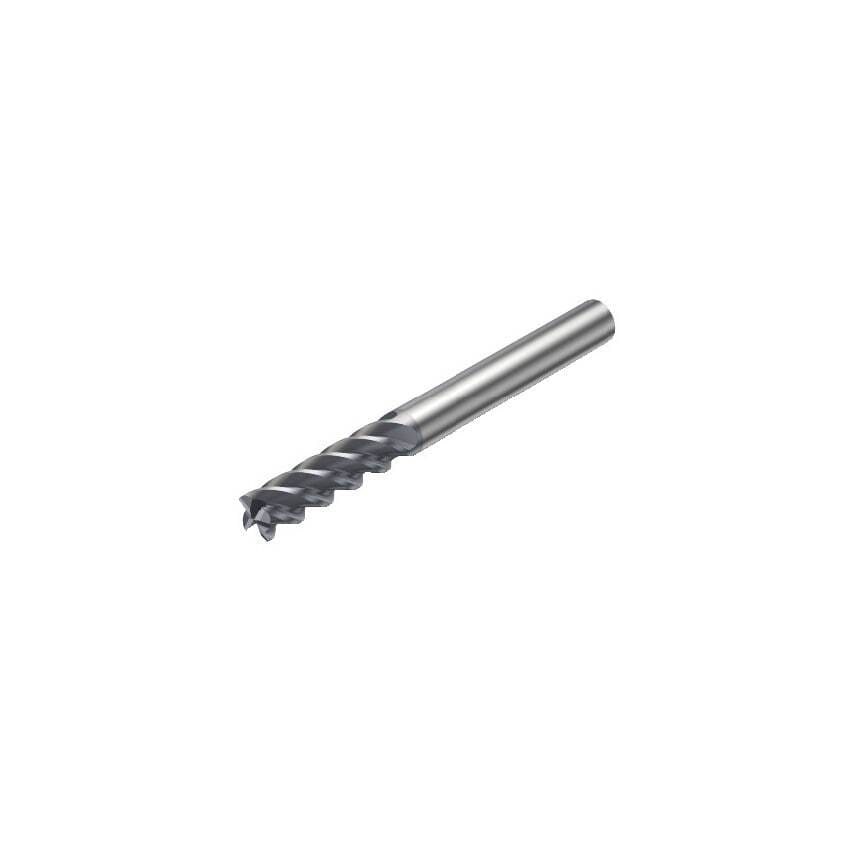

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Finish/Coating | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 14mm |
| Basic Standard Group | Coromant |
| Weight | 0.22kg |
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| Shank Type | Cylindrical |
| Usable Length | 50mm |
| Material | Carbide |
| Maximum Ramping Angle | 4\u00b0 |
| Through Hole Function Property | Yes |
| Functional Length | 104mm |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Cutting Depth | 50mm |
| CoroPak | 12.2 |
| MFR Part No. | 26259905 |
| Unit Measured | Metric |
| Center Cutting Capability | Yes |
| Maximum Depth of Cut | 50mm |
| Cutting Diameter | 14mm |
| Grade | 1620 |
| Standards Met | COROMANT |
| Product Type | CoroMill Plura End Mill |
