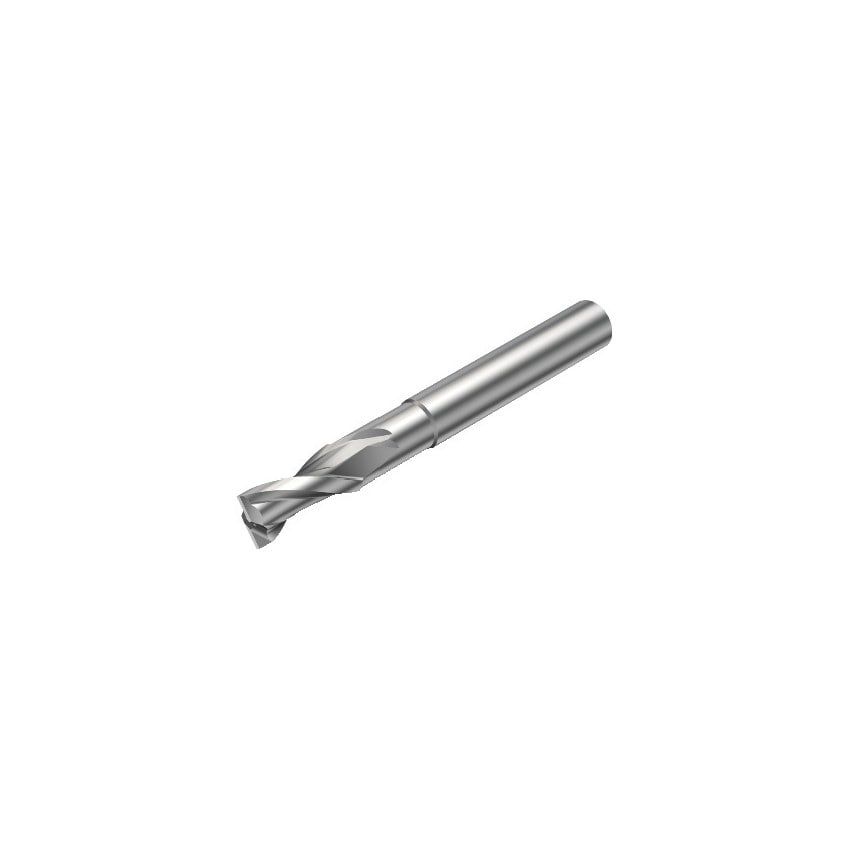

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Usable Length | 24mm |
| Coating Type | Uncoated |
| Rotational Speed Maximum | 80000 1/min |
| Functional Length | 65mm |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 26260007 |
| Body Half Taper Angle | 30\u00b0 |
| Finish/Coating | Uncoated |
| Coating Process Type | Uncoated |
| Cutting Diameter | 6mm |
| Through Hole Function Property | Yes |
| CoroPak | 12.2 |
| Grade | H10F |
| Corner Radius | 0.15mm |
| Maximum Depth of Cut | 9mm |
| Material | Solid Carbide |
| Center Cutting Capability | Yes |
| ISO Cutting Tool Material | Uncoated WC |
| Product Type | CoroMill Plura End Mill |
| Maximum Ramping Angle | 15\u00b0 |
| Basic Standard Group | Coromant |
| Connection Diameter | 9.53mm |
| Standards Met | COROMANT |
| Unit Measured | Metric |
| Maximum Cutting Depth | 9mm |
