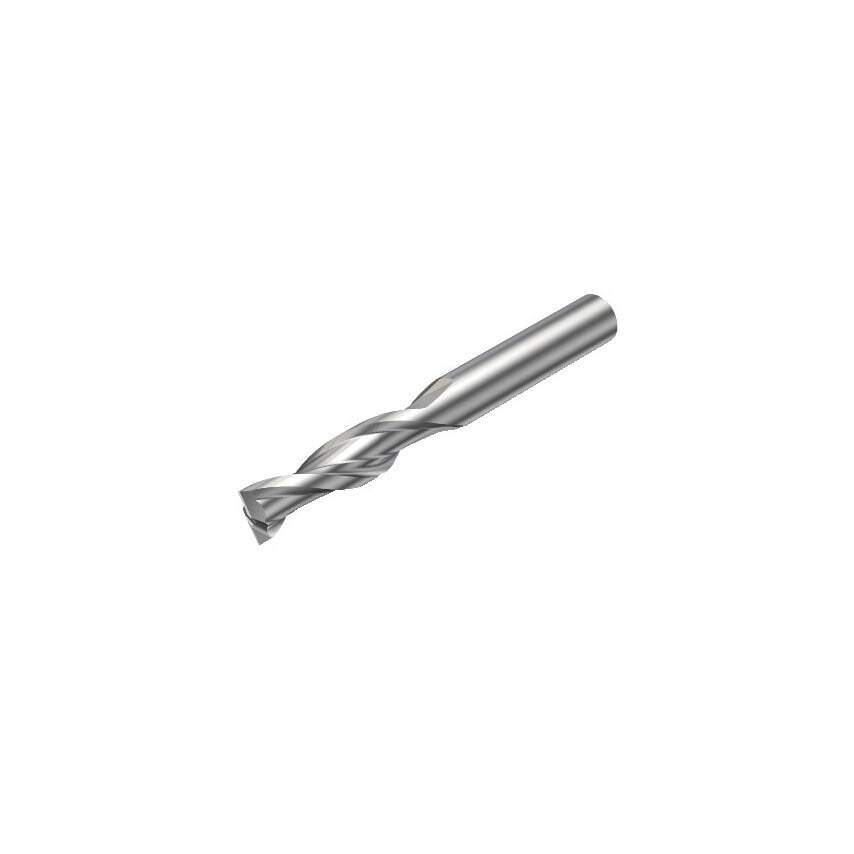

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Cutting Depth | 24mm |
| Cutting Diameter | 6mm |
| MFR Part No. | 26260041 |
| Maximum Ramping Angle | 15\u00b0 |
| Connection Diameter | 9.53mm |
| Coating Type | Uncoated |
| CoroPak | 12.2 |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Maximum Depth of Cut | 24mm |
| Finish/Coating | Uncoated |
| Center Cutting Capability | Yes |
| Rotational Speed Maximum | 80000 1/min |
| Functional Length | 65mm |
| Through Hole Function Property | Yes |
| Basic Standard Group | Coromant |
| Grade | H10F |
| ISO Cutting Tool Material | Uncoated WC |
| Product Type | CoroMill Plura End Mill |
| Corner Radius | 0.15mm |
| Usable Length | 24mm |
| Standards Met | COROMANT |
| Material | Carbide |
| Coating Process Type | Uncoated |
