Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Functional Length | 72mm |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| CoroPak | 12.2 |
| Center Cutting Capability | Yes |
| Usable Length | 19mm |
| Maximum Depth of Cut | 19mm |
| MFR Part No. | 26260076 |
| Finish/Coating | PVD |
| Coating Type | TiCN |
| Maximum Ramping Angle | 15\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Diameter | 10mm |
| Material | Solid Carbide |
| Unit Measured | Metric |
| Connection Diameter | 25mm |
| Coating Process Type | PVD |
| Basic Standard Group | DIN 6527 L |
| Standards Met | DIN 6527 L |
| Grade | 1630 |
| Rotational Speed Maximum | 80000 1/min |

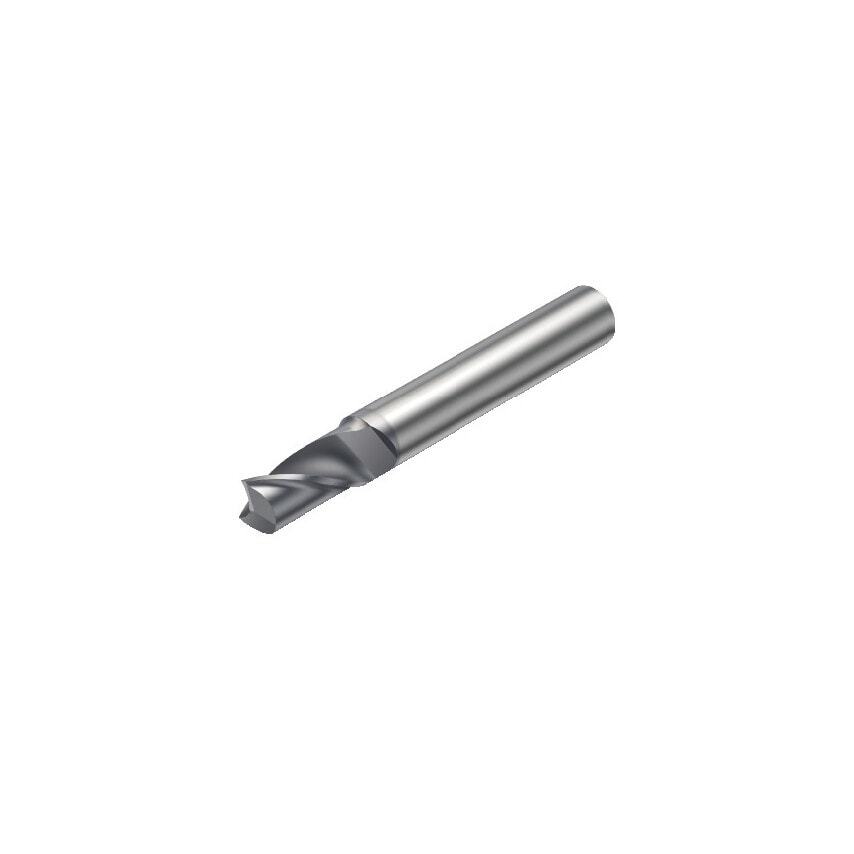

| Product Type | CoroMill Plura End Mill |
| Maximum Cutting Depth | 19mm |
