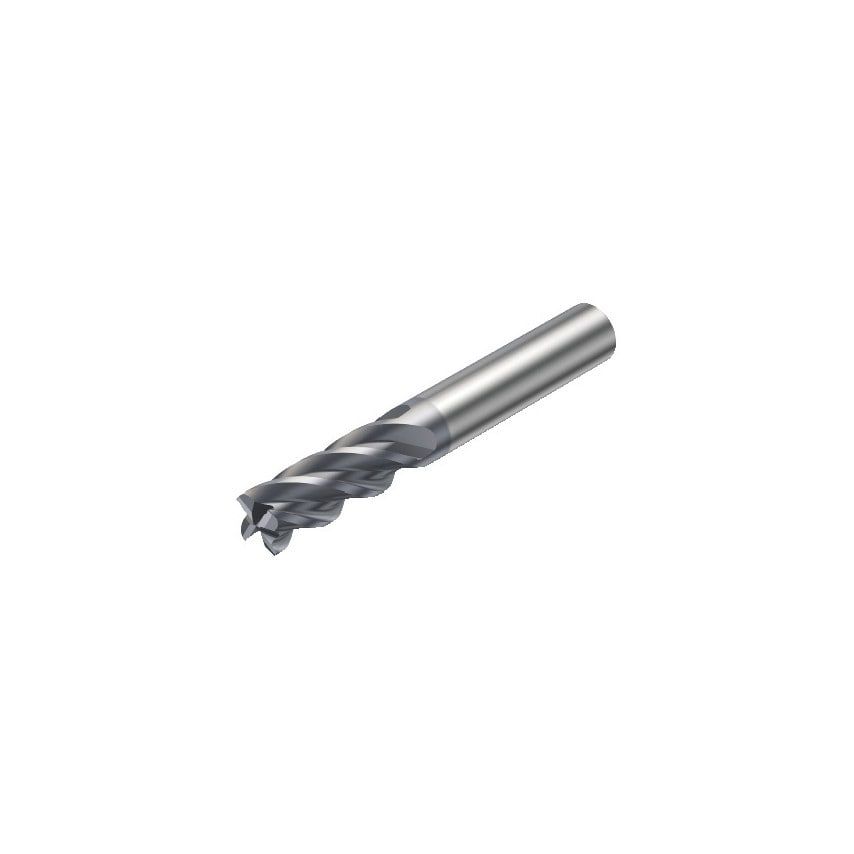

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 26260119 |
| Shank Type | Weldon |
| Functional Length | 57mm |
| CoroPak | 12.2 |
| Maximum Depth of Cut | 11mm |
| Usable Length | 11mm |
| Weight | 28.7g |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Connection Diameter | 6mm |
| Basic Standard Group | DIN 6527 L |
| Grade | 1630 |
| Center Cutting Capability | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Product Type | Solid Carbide Endmill |
| Body Half Taper Angle | 30\u00b0 |
| Coating Process Type | PVD |
| Standards Met | DIN 6527 L |
| Finish/Coating | PVD |
| Coating Type | AlCrN |
| Material | Solid Carbide |
| Rotational Speed Maximum | 80000 1/min |
| Cutting Diameter | 4mm |
| Maximum Cutting Depth | 11mm |
| Maximum Ramping Angle | 5\u00b0 |
