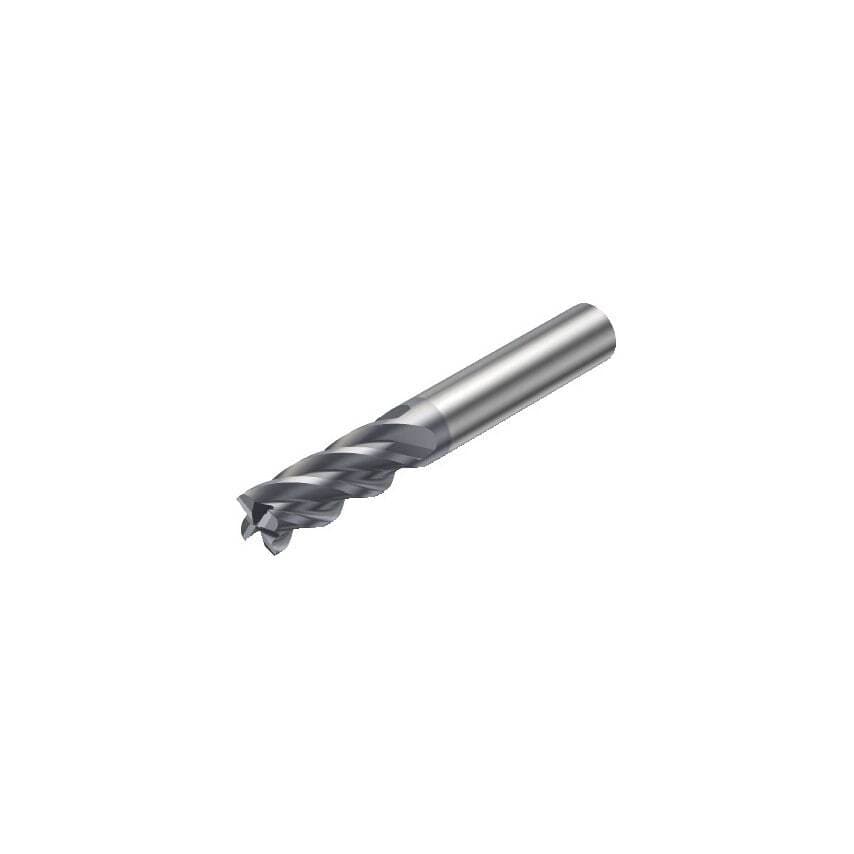

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Functional Length | 83mm |
| Maximum Cutting Depth | 26mm |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| MFR Part No. | 26260110 |
| Center Cutting Capability | Yes |
| Material | Solid Carbide |
| Basic Standard Group | DIN 6527 L |
| Weight | 180.6g |
| Coating Type | AlCrN |
| Maximum Ramping Angle | 5\u00b0 |
| Connection Diameter | 40mm |
| Coolant Entry Style | Without Coolant |
| Grade | 1630 |
| CoroPak | 12.2 |
| Finish/Coating | AlCrN |
| Cutting Diameter | 14mm |
| Shank Type | Weldon |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | DIN 6527 L |
| Product Type | Solid Carbide Endmill |
| Coating Process Type | PVD |
| Rotational Speed Maximum | 33100 1/min |
| Maximum Depth of Cut | 26mm |
| Usable Length | 26mm |
