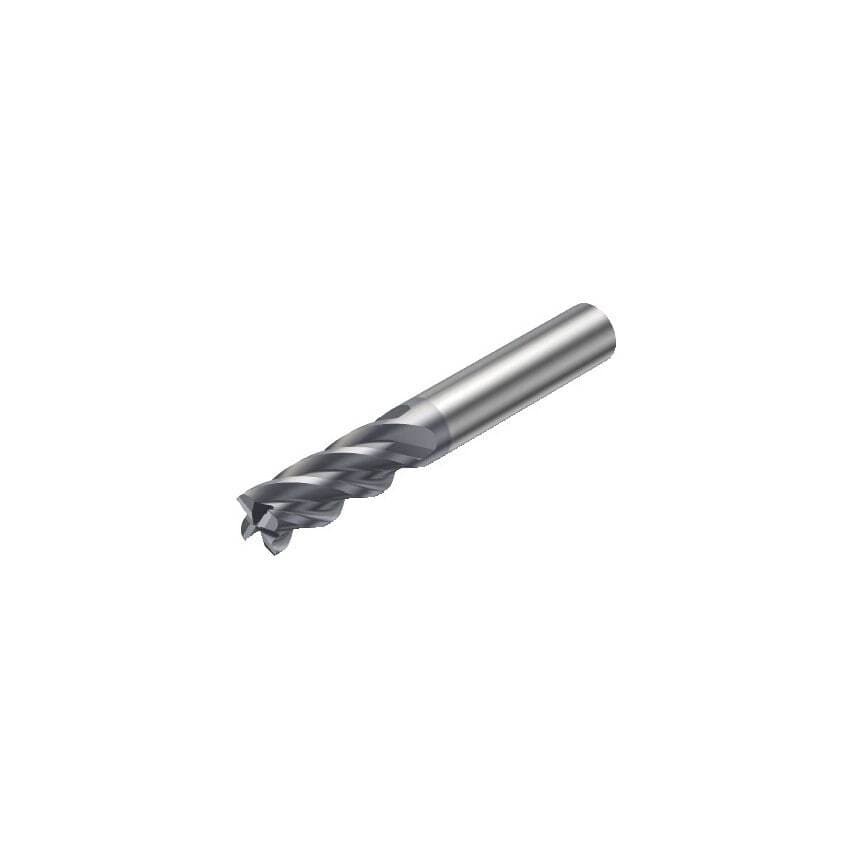

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Grade | 1630 |
| Usable Length | 22mm |
| Center Cutting Capability | Yes |
| Basic Standard Group | DIN 6527 L |
| Maximum Depth of Cut | 22mm |
| Finish/Coating | AlCrN |
| Coating Type | AlCrN |
| Functional Length | 72mm |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 10mm |
| Maximum Ramping Angle | 5\u00b0 |
| Standards Met | DIN 6527 L |
| Maximum Cutting Depth | 22mm |
| Coating Process Type | PVD |
| MFR Part No. | 26260108 |
| Rotational Speed Maximum | 72600 1/min |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Material | Solid Carbide |
| Connection Diameter | 25mm |
| Shank Type | Weldon |
| CoroPak | 12.2 |
| Product Type | Solid Carbide Endmill |
