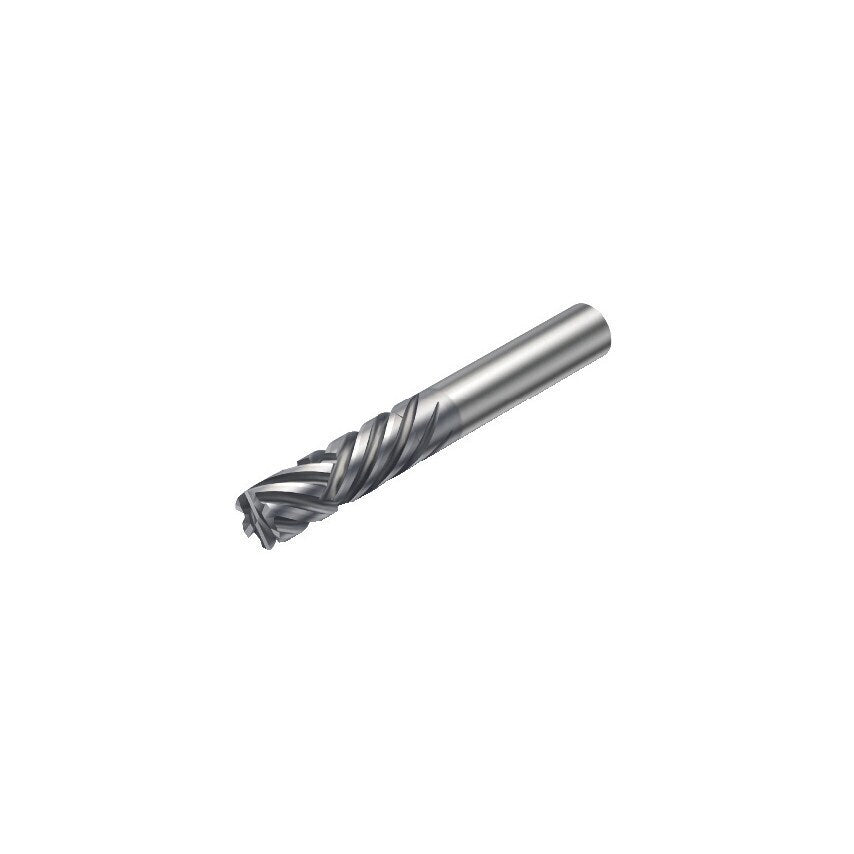

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 26255720 |
| Maximum Depth of Cut | 30mm |
| Grade | 1630 |
| Connection Diameter | 25mm |
| Maximum Ramping Angle | 0\u00b0 |
| CoroPak | 13.1 |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Basic Standard Group | Coromant |
| Coolant Entry Style | Without Coolant |
| Rotational Speed Maximum | 40000 1/min |
| Unit Measured | Metric |
| Center Cutting Capability | Yes |
| Coating Type | TiAlN |
| Usable Length | 30mm |
| Maximum Cutting Depth | 30mm |
| Functional Length | 76mm |
| Corner Radius | 0mm |
| Cutting Diameter | 10mm |
