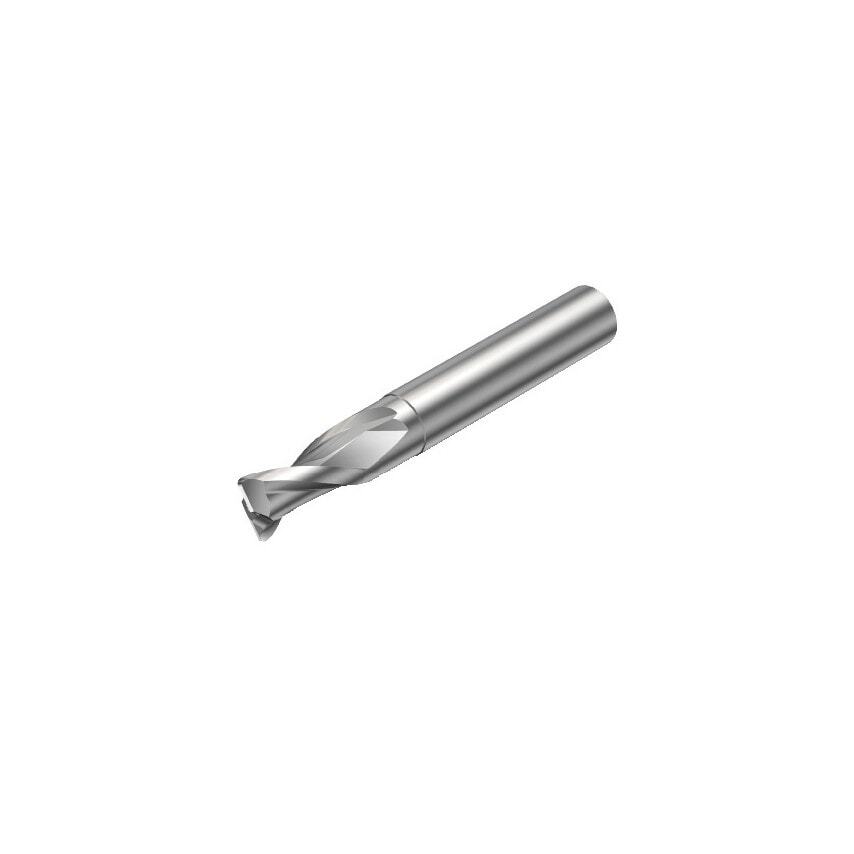

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Depth of Cut | 24mm |
| Finish/Coating | Uncoated |
| Weight | 0.23kg |
| Coolant Entry Style | Without Coolant |
| Rotational Speed Maximum | 31500 1/min |
| Material | Solid Carbide |
| Grade | H10F |
| ISO Cutting Tool Material | Uncoated WC |
| Body Half Taper Angle | 30\u00b0 |
| CoroPak | 12.2 |
| Unit Measured | Metric |
| Connection Diameter | 16mm |
| Coating Type | Uncoated |
| Through Hole Function Property | Yes |
| Center Cutting Capability | Yes |
| Cutting Diameter | 16mm |
| Standards Met | COROMANT |
| Usable Length | 47mm |
| Coating Process Type | Uncoated |
| MFR Part No. | 26260146 |
| Maximum Ramping Angle | 15\u00b0 |
| Basic Standard Group | Coromant |
| Maximum Cutting Depth | 24mm |
| Functional Length | 92mm |
| Corner Radius | 2mm |
