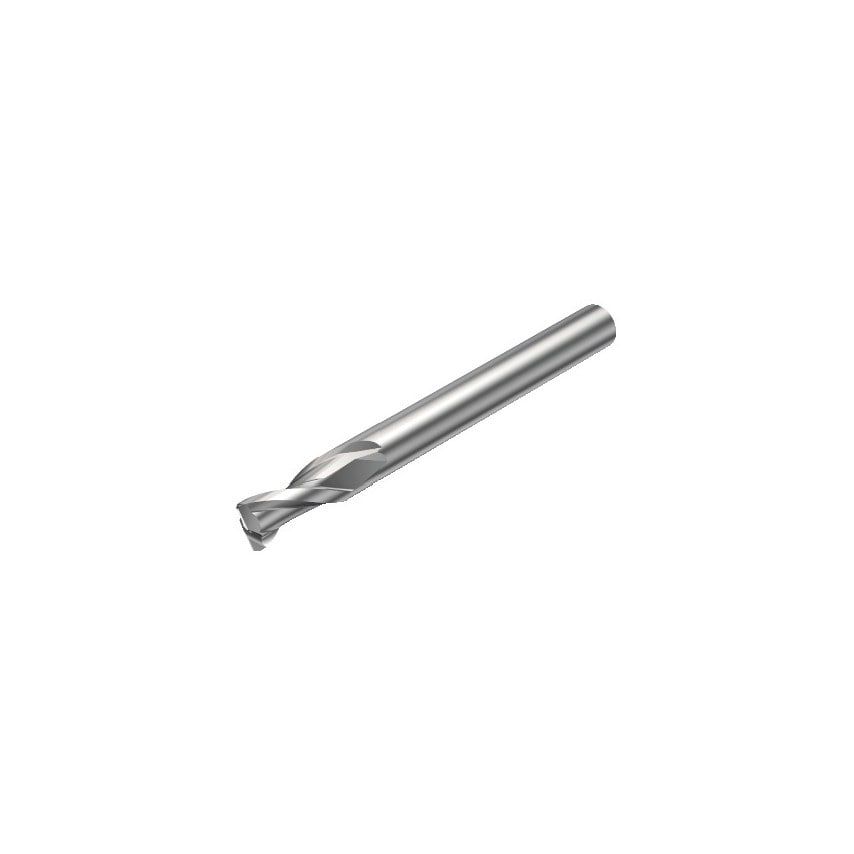

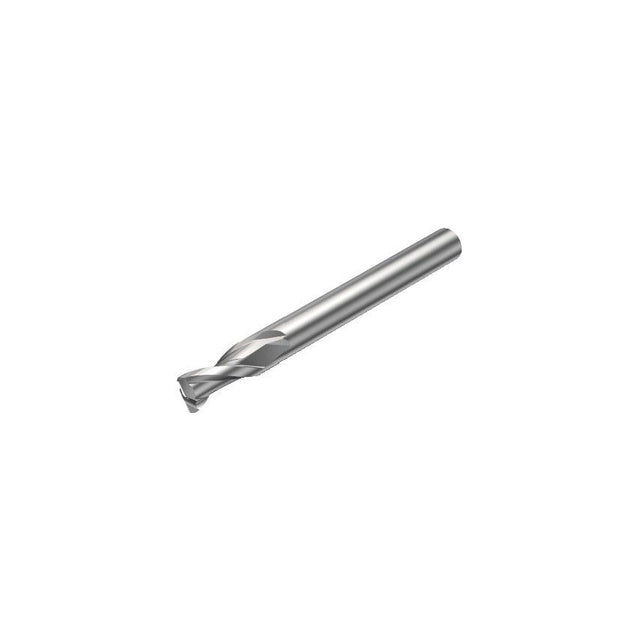

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 26261151 |
| Weight | 20.3g |
| Usable Length | 32mm |
| Standards Met | COROMANT |
| Functional Length | 60mm |
| Center Cutting Capability | Yes |
| Basic Standard Group | Coromant |
| CoroPak | 13.1 |
| Connection Diameter | 3.8mm |
| Maximum Depth of Cut | 5mm |
| Rotational Speed Maximum | 40000 1/min |
| Maximum Ramping Angle | 15\u00b0 |
| Through Hole Function Property | Yes |
| Grade | H10F |
| Coolant Entry Style | Without Coolant |
| Corner Radius | 0.3mm |
| Unit Measured | Metric |
| Maximum Cutting Depth | 5mm |
| ISO Cutting Tool Material | Uncoated WC |
| Finish/Coating | Uncoated |
| Coating Process Type | Uncoated |
| Cutting Diameter | 4mm |
| Material | Carbide |
| Coating Type | Uncoated |
