£2.64
Loading...

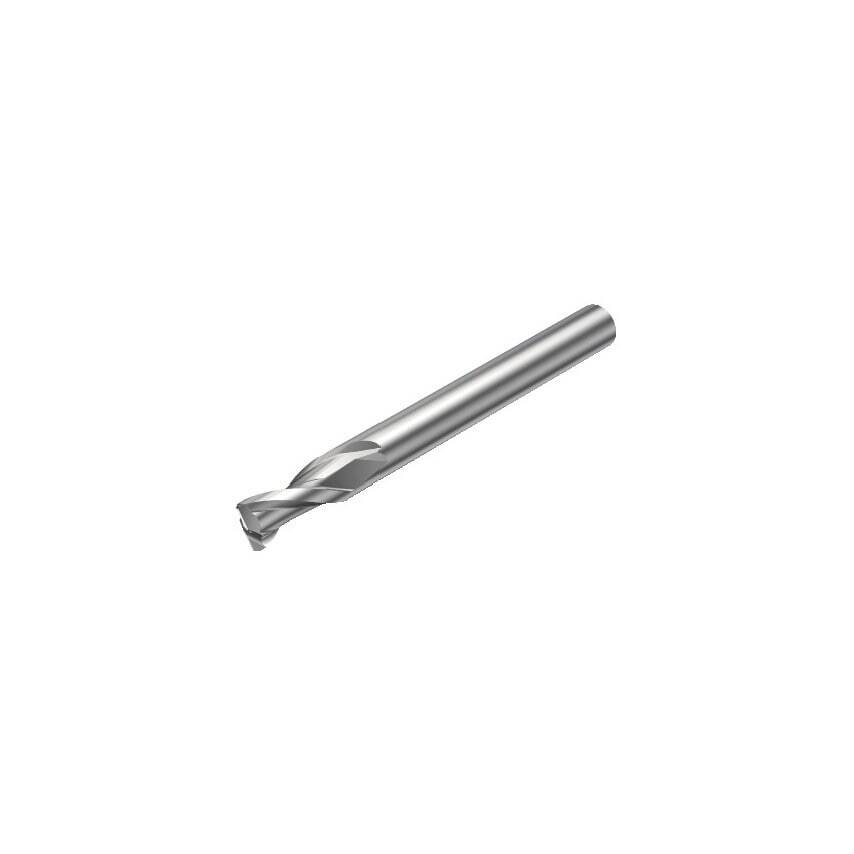

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Finish/Coating | Uncoated |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 8mm |
| Grade | H10F |
| Center Cutting Capability | Yes |
| Coolant Entry Style | Without Coolant |
| Coating Type | Uncoated |
| Cutting Diameter | 5mm |
| Material | Carbide |
| Rotational Speed Maximum | 40000 1/min |
| Basic Standard Group | Coromant |
| ISO Cutting Tool Material | Uncoated WC |
| Coating Process Type | Uncoated |
| Maximum Ramping Angle | 15\u00b0 |
| Usable Length | 42mm |
| CoroPak | 13.1 |
| Functional Length | 70mm |
| Connection Diameter | 4.8mm |
| Standards Met | COROMANT |
| Corner Radius | 0.5mm |
| MFR Part No. | 26261152 |
| Unit Measured | Metric |
| Maximum Depth of Cut | 8mm |
| Weight | 30.1g |
