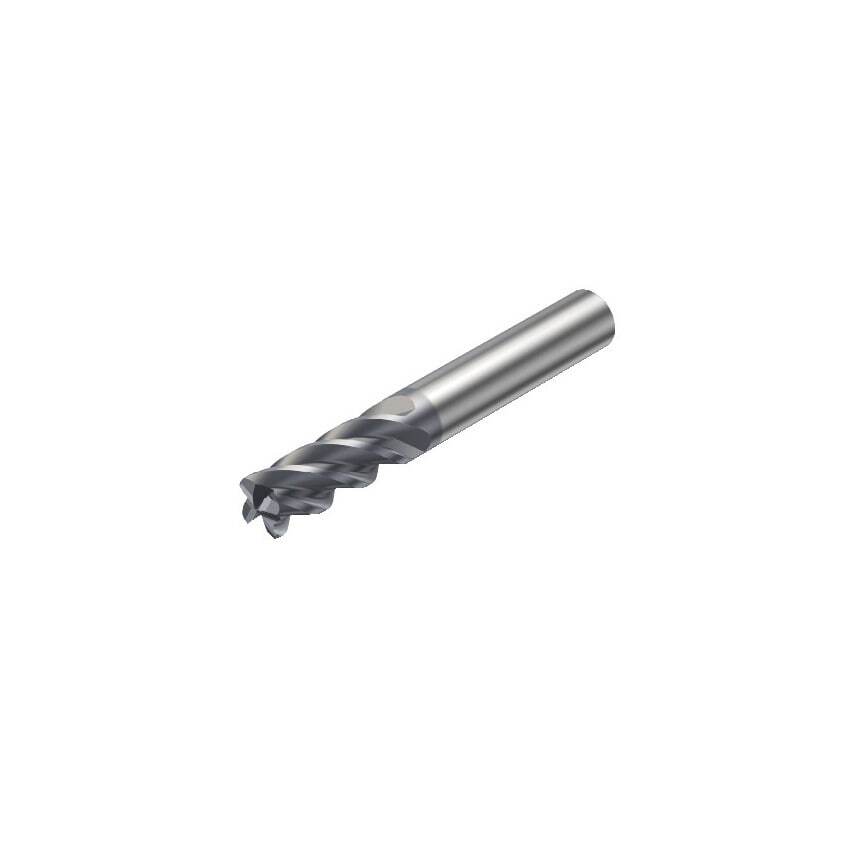

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Body Half Taper Angle | 30\u00b0 |
| Usable Length | 11mm |
| Center Cutting Capability | Yes |
| Shank Type | Cylindrical |
| Material | Solid Carbide |
| Connection Diameter | 14.35mm |
| Coating Process Type | PVD |
| Finish/Coating | TiAlN |
| Product Type | Solid Carbide Endmill |
| Through Hole Function Property | Yes |
| Basic Standard Group | DIN 6527 L |
| Unit Measured | Metric |
| Maximum Ramping Angle | 5\u00b0 |
| Coating Type | TiAlN |
| MFR Part No. | 26260154 |
| Corner Radius | 0.5mm |
| Grade | 1640 |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 4mm |
| Rotational Speed Maximum | 80000 1/min |
| Standards Met | DIN 6527 L |
| Functional Length | 57mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 11mm |
| Maximum Depth of Cut | 11mm |
| CoroPak | 12.2 |
