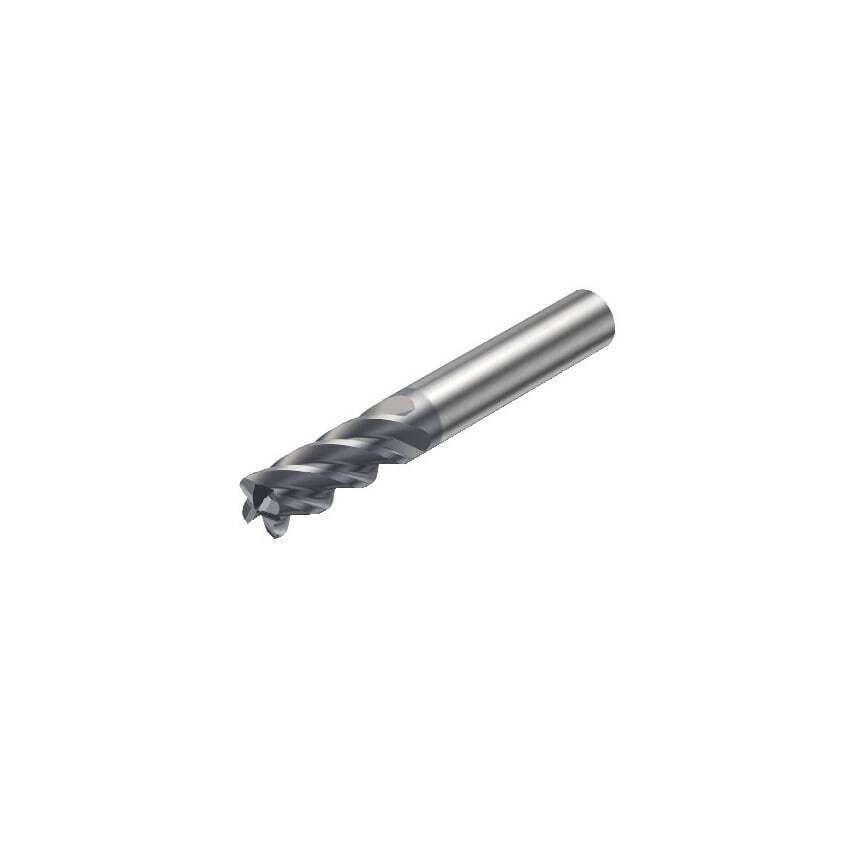

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Cutting Depth | 11mm |
| Maximum Ramping Angle | 5\u00b0 |
| Usable Length | 11mm |
| Material | Solid Carbide |
| Connection Diameter | 14.35mm |
| Corner Radius | 1mm |
| Center Cutting Capability | Yes |
| Functional Length | 57mm |
| Through Hole Function Property | Yes |
| Cutting Diameter | 4mm |
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| Standards Met | DIN 6527 L |
| Shank Type | Cylindrical |
| Rotational Speed Maximum | 80000 1/min |
| Coolant Entry Style | Without Coolant |
| Maximum Depth of Cut | 11mm |
| Basic Standard Group | DIN 6527 L |
| Unit Measured | Metric |
| Body Half Taper Angle | 30\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | 1640 |
| Finish/Coating | TiAlN |
| Product Type | Solid Carbide Endmill |
| CoroPak | 12.2 |
| MFR Part No. | 26260160 |
