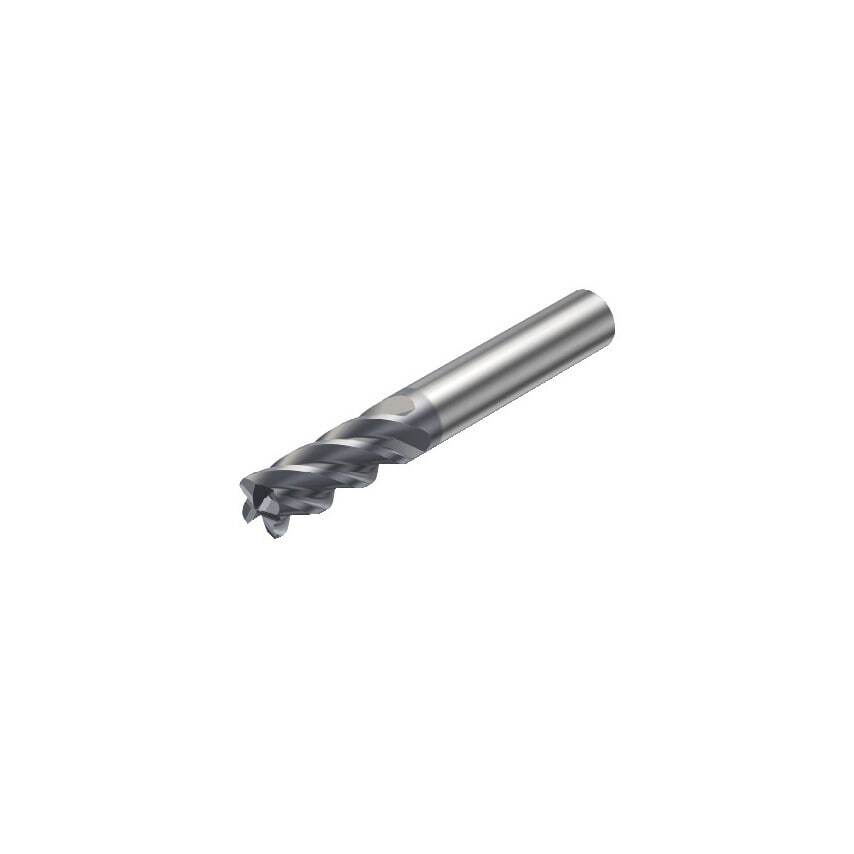

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 5\u00b0 |
| Through Hole Function Property | Yes |
| Shank Type | Cylindrical |
| Grade | 1640 |
| Standards Met | DIN 6527 L |
| Basic Standard Group | DIN 6527 L |
| Rotational Speed Maximum | 80000 1/min |
| Functional Length | 63mm |
| Maximum Depth of Cut | 19mm |
| Finish/Coating | TiAlN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 26260158 |
| Connection Diameter | 100.5mm |
| Coating Type | TiAlN |
| Unit Measured | Metric |
| Usable Length | 19mm |
| Center Cutting Capability | Yes |
| Corner Radius | 2mm |
| CoroPak | 12.2 |
| Coolant Entry Style | Without Coolant |
| Maximum Cutting Depth | 19mm |
| Coating Process Type | PVD |
| Product Type | Solid Carbide Endmill |
| Cutting Diameter | 8mm |
| Material | Solid Carbide |
