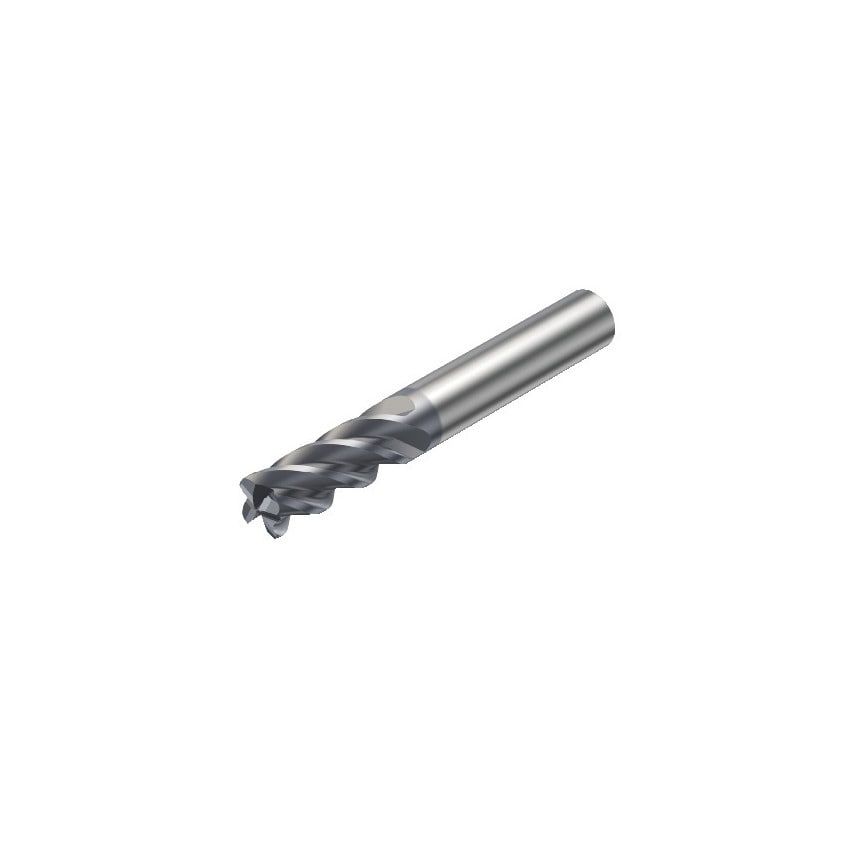

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Shank Type | Cylindrical |
| Finish/Coating | TiAlN |
| Center Cutting Capability | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 26260162 |
| Standards Met | DIN 6527 L |
| Coolant Entry Style | Without Coolant | Without Coolant |
| Product Type | Solid Carbide Endmill |
| CoroPak | 12.2 |
| Connection Diameter | 14.75mm |
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 80000 1/min |
| Unit Measured | Metric |
| Maximum Depth of Cut | 13mm |
| Material | Solid Carbide |
| Functional Length | 57mm |
| Maximum Cutting Depth | 0.51in |
| Basic Standard Group | DIN 6527 L |
| Usable Length | 13mm |
| Coating Type | TiAlN |
| Grade | 1640 |
| Cutting Diameter | 5mm |
| Maximum Ramping Angle | 5\u00b0 |
| Coating Process Type | PVD |
| Body Half Taper Angle | 30\u00b0 |
| Corner Radius | 1mm |
