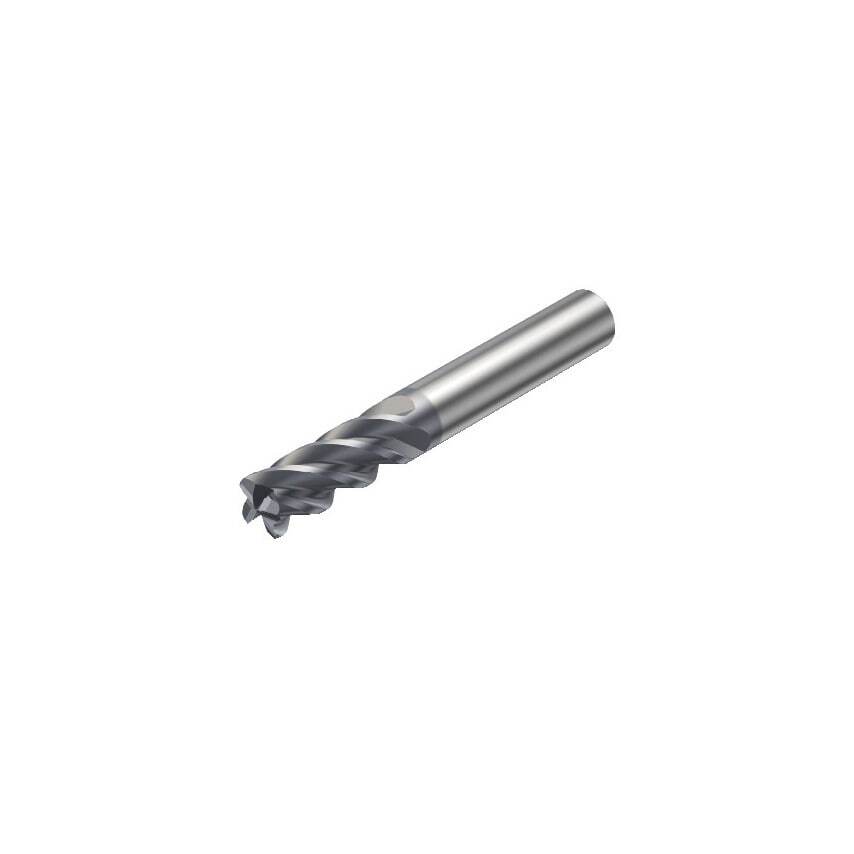

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Usable Length | 26mm |
| Corner Radius | 1mm |
| Cutting Diameter | 12mm |
| Through Hole Function Property | Yes |
| Material | Solid Carbide |
| Shank Type | Cylindrical |
| Coolant Entry Style | Without Coolant |
| Basic Standard Group | DIN 6527 L |
| Coating Type | TiAlN |
| Maximum Cutting Depth | 26mm |
| CoroPak | 12.2 |
| Unit Measured | Metric |
| Coating Process Type | PVD |
| Rotational Speed Maximum | 43800 1/min |
| Maximum Ramping Angle | 5\u00b0 |
| Maximum Depth of Cut | 26mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Connection Diameter | 12mm |
| MFR Part No. | 26260169 |
| Functional Length | 83mm |
| Center Cutting Capability | Yes |
| Weight | 0.13kg |
| Product Type | Solid Carbide Endmill |
| Standards Met | DIN 6527 L |
| Finish/Coating | TiAlN |
| Grade | 1640 |
