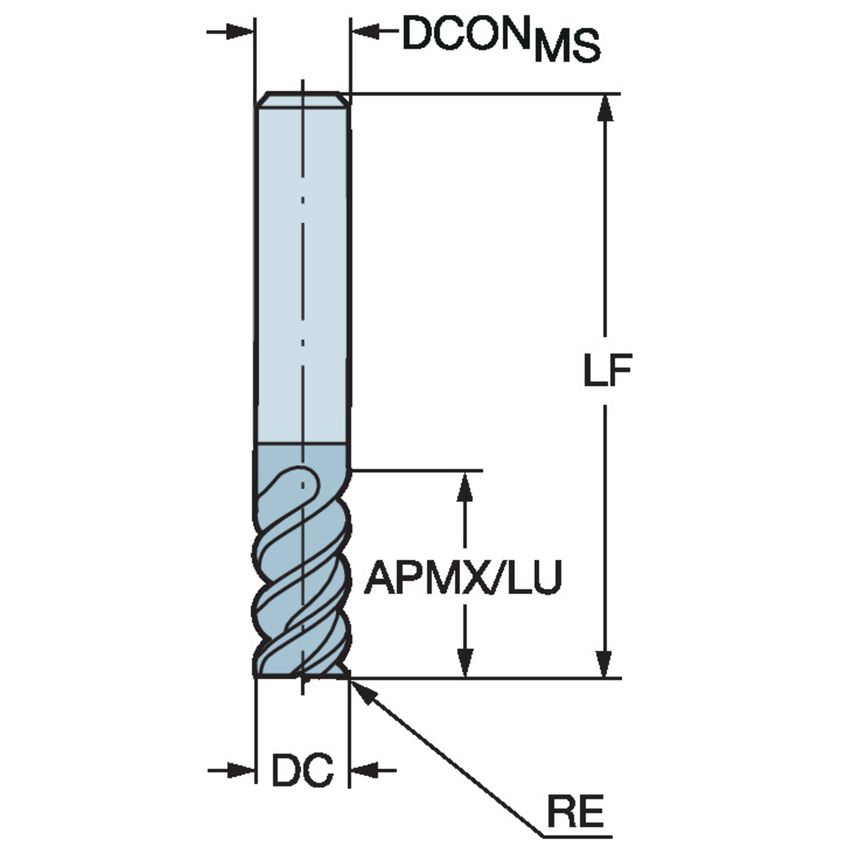

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Milling Application | Finishing |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Unit Measured | Metric |
| Grade | 1610 |
| Coating Type | TiAlN |
| Through Hole Function Property | Yes |
| MFR Part No. | 11527482 |
| CoroPak | 7.1 |
| Usable Length | 22mm |
| Basic Standard Group | DIN 6527 L |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant | Without Coolant |
| Maximum Ramping Angle | 2\u00b0 |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Cutting Depth | 0.87in |
| Product Type | End Mills |
| Functional Length | 72mm |
| Center Cutting Capability | No |
| Material | Solid Carbide |
| Corner Radius | 1mm |
| Finish/Coating | TiAlN |
| Cutting Diameter | 10mm |
| Maximum Depth of Cut | 22mm |
| Connection Diameter | 10mm |
| Standards Met | DIN 6527 L |
