Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Corner Radius | 0.5mm |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Center Cutting Capability | No |
| Finish/Coating | TiAlN |
| Material | Solid Carbide |
| Basic Standard Group | DIN 6527 L |

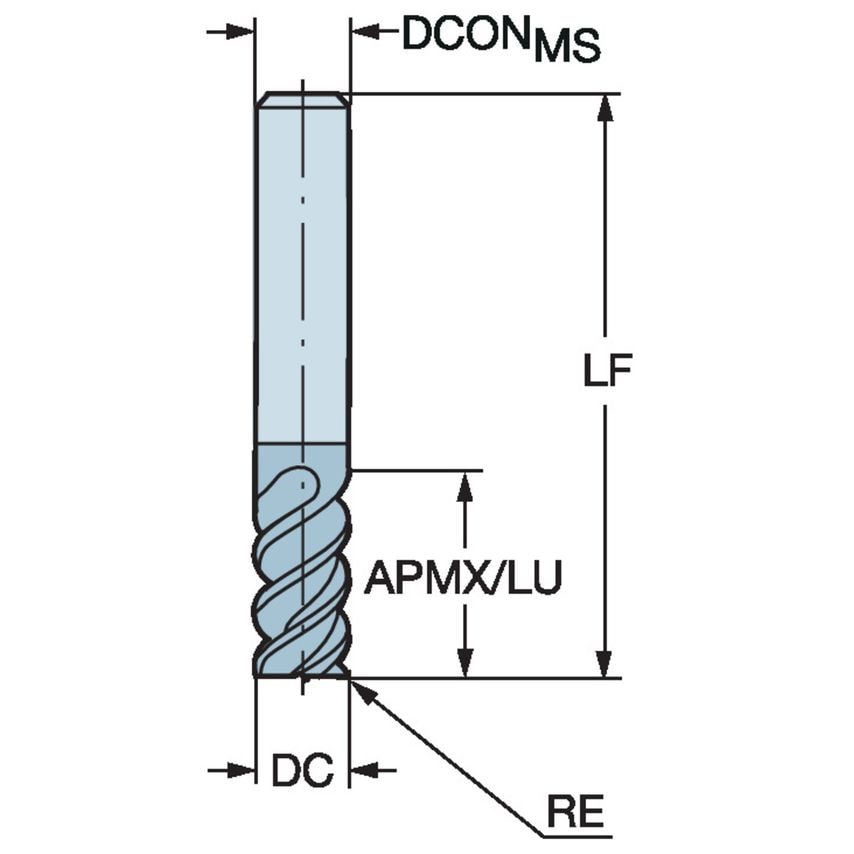

| Connection Diameter | 8mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | DIN 6527 L |
| CoroPak | 7.1 |
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 80000 1/min |
| Grade | 1610 |
| Coating Type | TiAlN |
| Maximum Depth of Cut | 19mm |
| Product Type | End Mills |
| Maximum Ramping Angle | 2\u00b0 |
| MFR Part No. | 11527471 |
| Usable Length | 19mm |
| Functional Length | 63mm |
| Unit Measured | Metric |
| Cutting Diameter | 8mm |
| Milling Application | Finishing |
