Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Through Hole Function Property | Yes |
| Maximum Ramping Angle | 2\u00b0 |

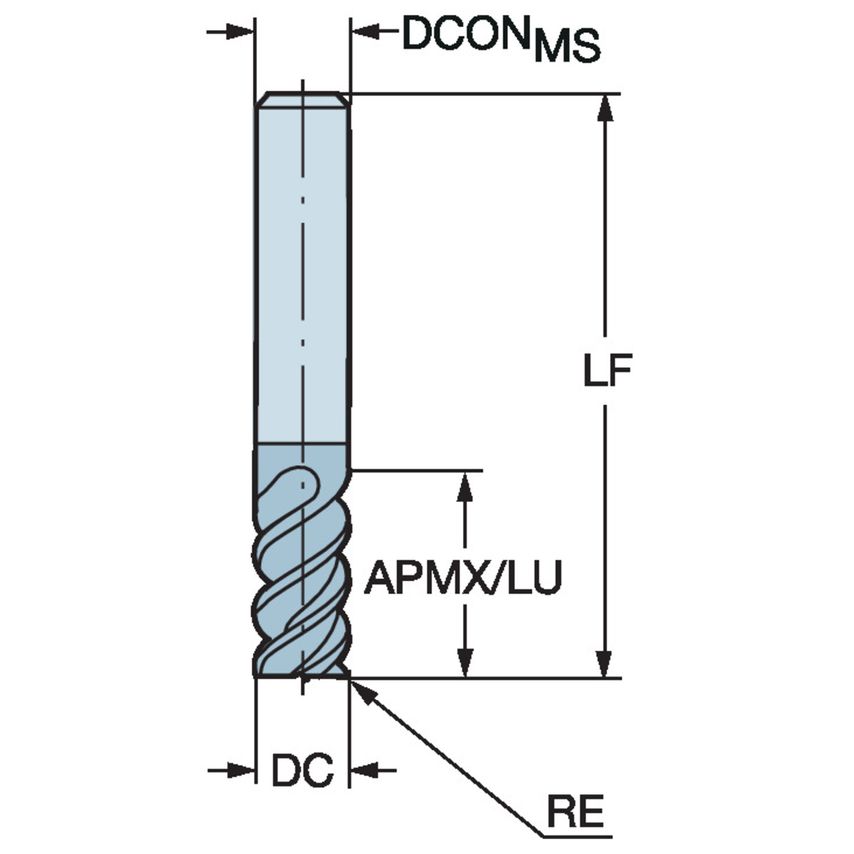

| Usable Length | 11mm |
| Functional Length | 57mm |
| Grade | 1610 |
| Maximum Cutting Depth | 11mm |
| Material | Solid Carbide |
| Corner Radius | 0.5mm |
| MFR Part No. | 11527456 |
| Rotational Speed Maximum | 80000 1/min |
| Standards Met | DIN 6527 L |
| Finish/Coating | TiAlN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 7.1 |
| Milling Application | Finishing |
| Coating Type | TiAlN |
| Basic Standard Group | DIN 6527 L |
| Coolant Entry Style | Without Coolant |
| Product Type | End Mills |
| Cutting Diameter | 4mm |
| Center Cutting Capability | No |
| Coating Process Type | PVD |
| Connection Diameter | 6mm |
| Maximum Depth of Cut | 11mm |
| Unit Measured | Metric |
