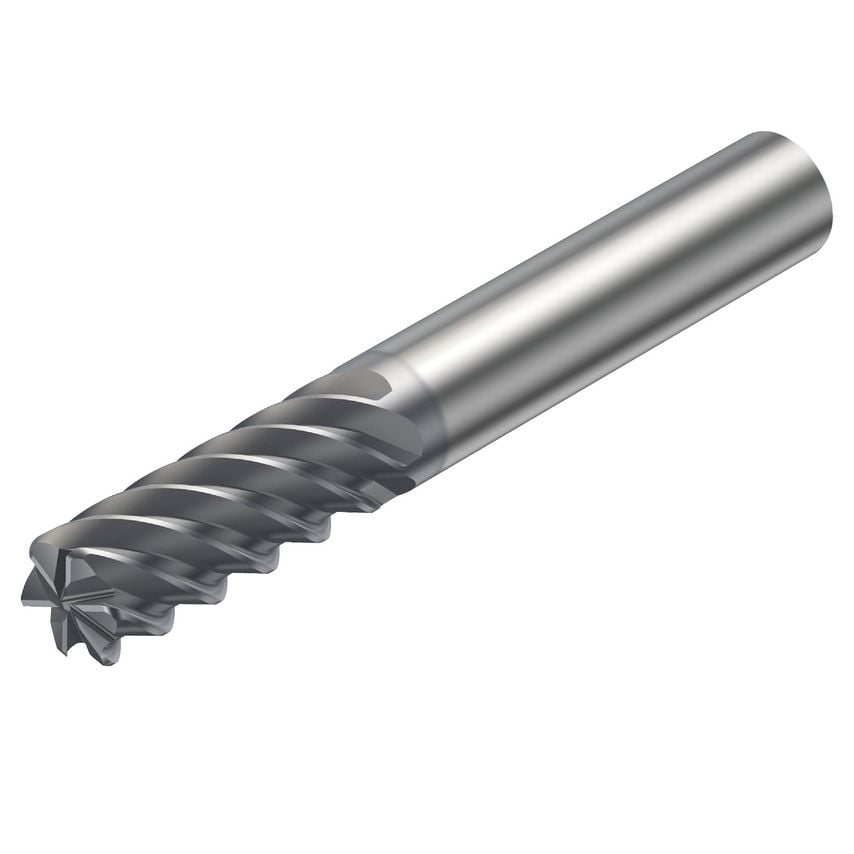

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Finish/Coating | TiAlN |
| Product Type | End Mills |
| Grade | 1610 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Material | Solid Carbide |
| Maximum Ramping Angle | 2\u00b0 |
| Basic Standard Group | DIN 6527 L |
| MFR Part No. | 11527530 |
| Through Hole Function Property | Yes |
| Coating Type | TiAlN |
| Center Cutting Capability | No |

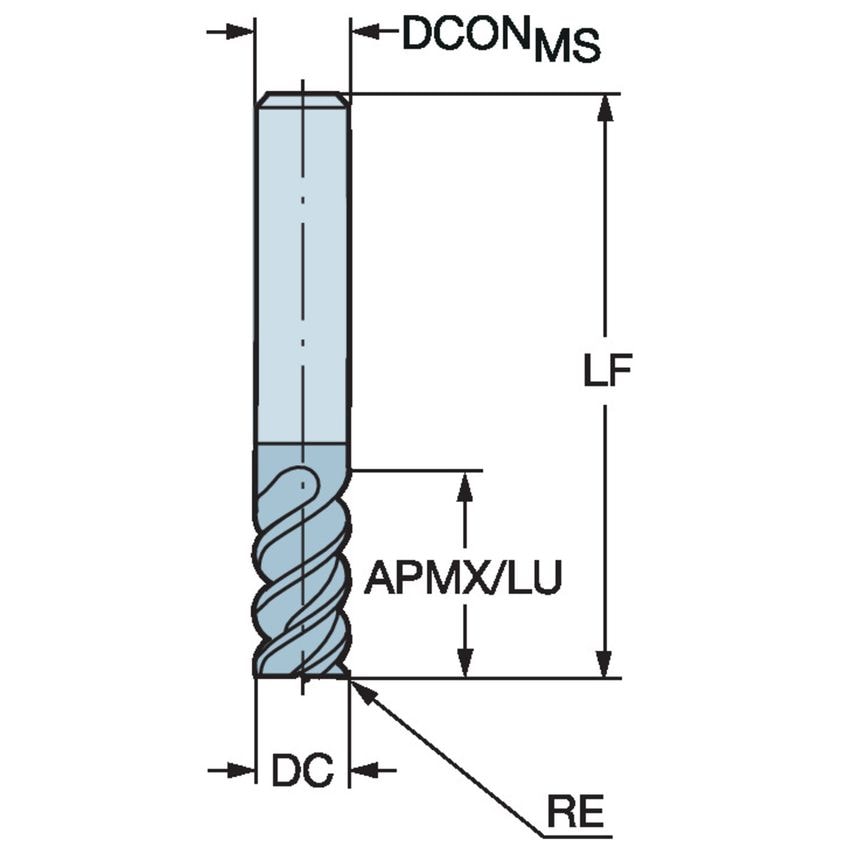

| Cutting Diameter | 10mm |
| Maximum Cutting Depth | 0.87in |
| Rotational Speed Maximum | 80000 1/min |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant | Without Coolant |
| Connection Diameter | 22mm |
| CoroPak | 7.1 |
| Standards Met | DIN 6527 L |
| Usable Length | 22mm |
| Coating Process Type | PVD |
| Milling Application | Finishing |
| Functional Length | 72mm |
| Maximum Depth of Cut | 22mm |
| Corner Radius | 2mm |
