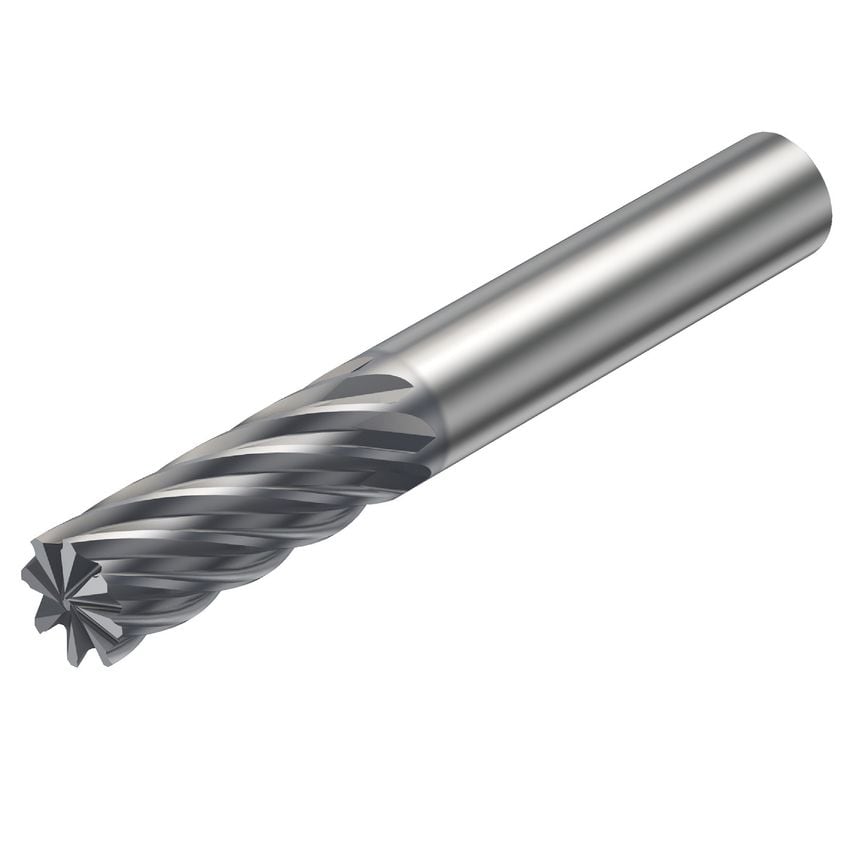

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coolant Entry Style | Without Coolant |
| Coating Type | TiAlN |
| Standards Met | DIN 6527 L |
| Coating Process Type | PVD |
| Center Cutting Capability | No |
| Maximum Cutting Depth | 13mm |
| MFR Part No. | 11528145 |
| Product Type | End Mills |
| Connection Diameter | 6mm |
| Functional Length | 57mm |
| Usable Length | 13mm |
| Cutting Diameter | 5mm |
| Grade | 1610 |
| Maximum Depth of Cut | 13mm |
| Finish/Coating | TiAlN |
| Material | Solid Carbide |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Ramping Angle | 2\u00b0 |
| Body Diameter | 0.2in |
| Milling Application | Finishing |
| Corner Radius | 0mm |
| Unit Measured | Metric |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 7.1 |
| Basic Standard Group | DIN 6527 L |
| Through Hole Function Property | Yes |
| Body Half Taper Angle | 30\u00b0 |
