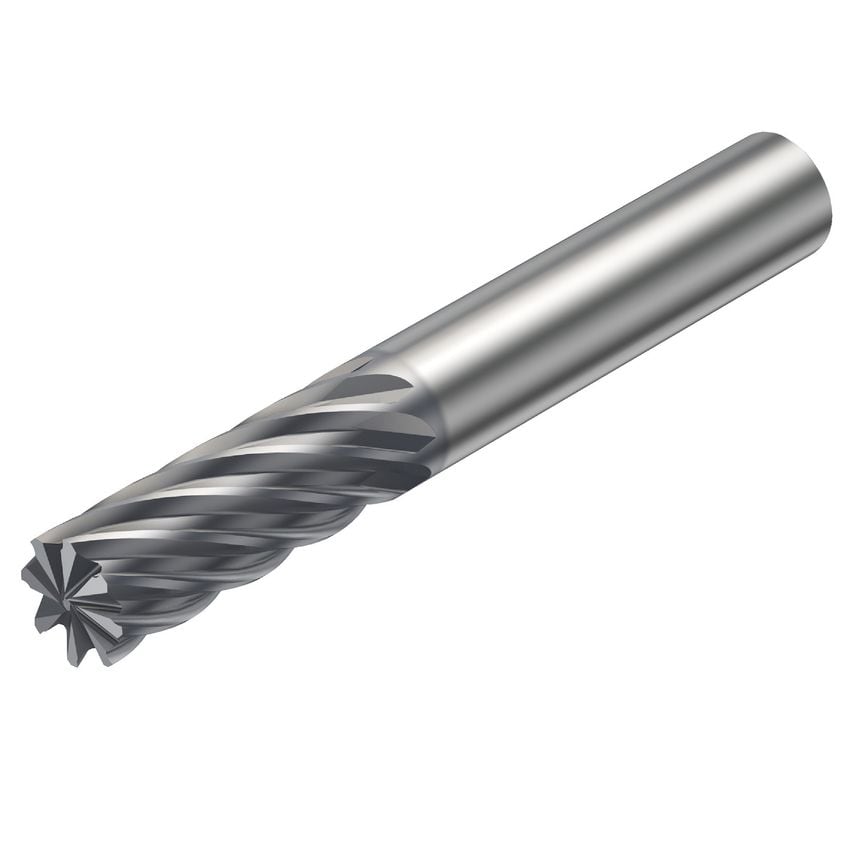

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 2\u00b0 |
| Coating Process Type | PVD |
| Functional Length | 83mm |
| Maximum Cutting Depth | 26mm |
| CoroPak | 7.1 |
| Milling Application | Finishing |
| Coating Type | TiAlN |
| Cutting Diameter | 12mm |
| Center Cutting Capability | No |
| Corner Radius | 0mm |
| Connection Diameter | 12mm |
| Weight | 0.14kg |
| Grade | 1610 |
| Rotational Speed Maximum | 80000 1/min |
| Through Hole Function Property | Yes |
| Usable Length | 26mm |
| Finish/Coating | TiAlN |
| Maximum Depth of Cut | 26mm |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Material | Solid Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 11528182 |
| Standards Met | DIN 6527 L |
| Product Type | End Mills |
| Basic Standard Group | DIN 6527 L |
