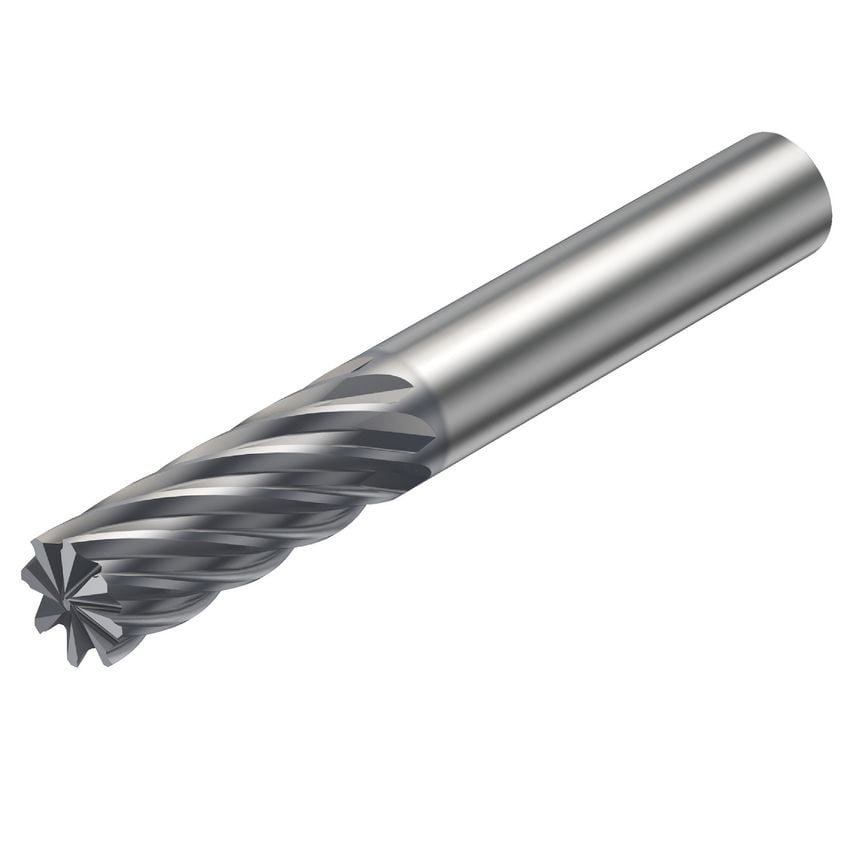

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 11528156 |
| Unit Measured | Metric |
| Maximum Depth of Cut | 13mm |
| Connection Diameter | 1.5mm |
| Coating Process Type | PVD |
| Milling Application | Finishing |
| Maximum Ramping Angle | 2\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Corner Radius | 0mm |
| Cutting Diameter | 6mm |
| Finish/Coating | TiAlN |
| Through Hole Function Property | Yes |
| Grade | 1610 |
| Rotational Speed Maximum | 80000 1/min |
| Center Cutting Capability | No |
| Usable Length | 13mm |
| Functional Length | 57mm |
| CoroPak | 7.1 |
| Coolant Entry Style | Without Coolant |
| Standards Met | DIN 6527 L |
| Material | Solid Carbide |
| Maximum Cutting Depth | 13mm |
| Basic Standard Group | DIN 6527 L |
| Product Type | End Mills |
| Coating Type | TiAlN |
