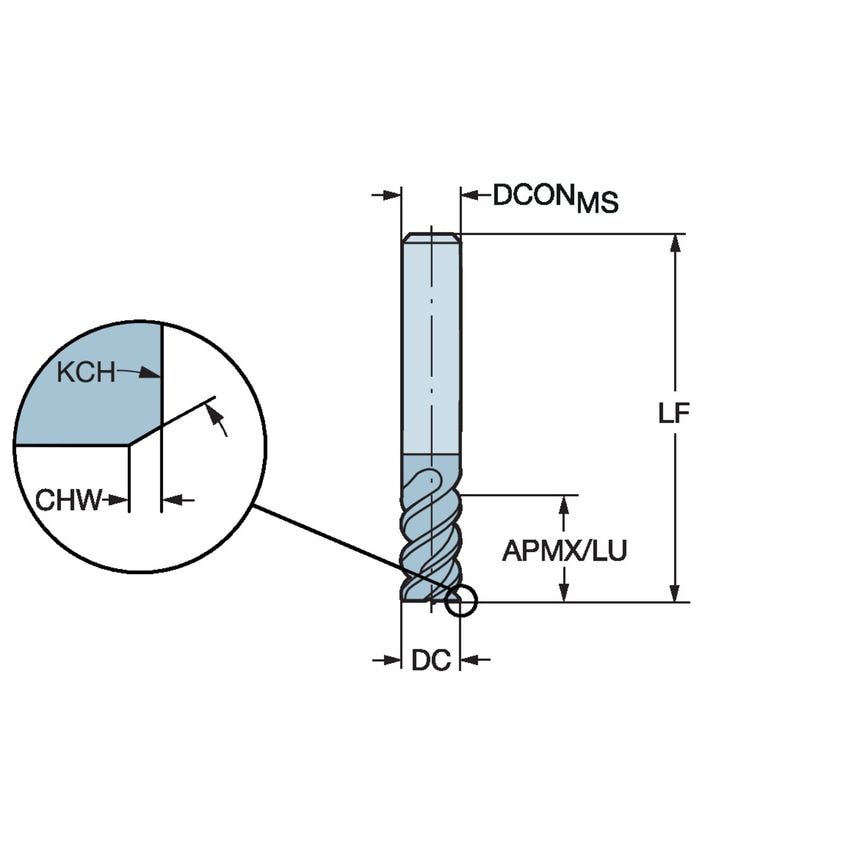

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 11566214 |
| Material | Solid Carbide |
| Coating Type | TiAlN |
| Maximum Ramping Angle | 3\u00b0 |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| Grade | 1620 |
| Finish/Coating | TiAlN |
| Basic Standard Group | DIN 6527 L |
| Product Type | End Mills |
| Standards Met | DIN 6527 L |
| Usable Length | 13mm |
| Coating Process Type | PVD |
| Functional Length | 57mm |
| Maximum Cutting Depth | 13mm |
| Maximum Depth of Cut | 13mm |
| Connection Diameter | 1mm |
| Unit Measured | Metric |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Milling Application | Finishing |
| Center Cutting Capability | No |
| Cutting Diameter | 6mm |
| CoroPak | 3.1 |
| Rotational Speed Maximum | 80000 1/min |
