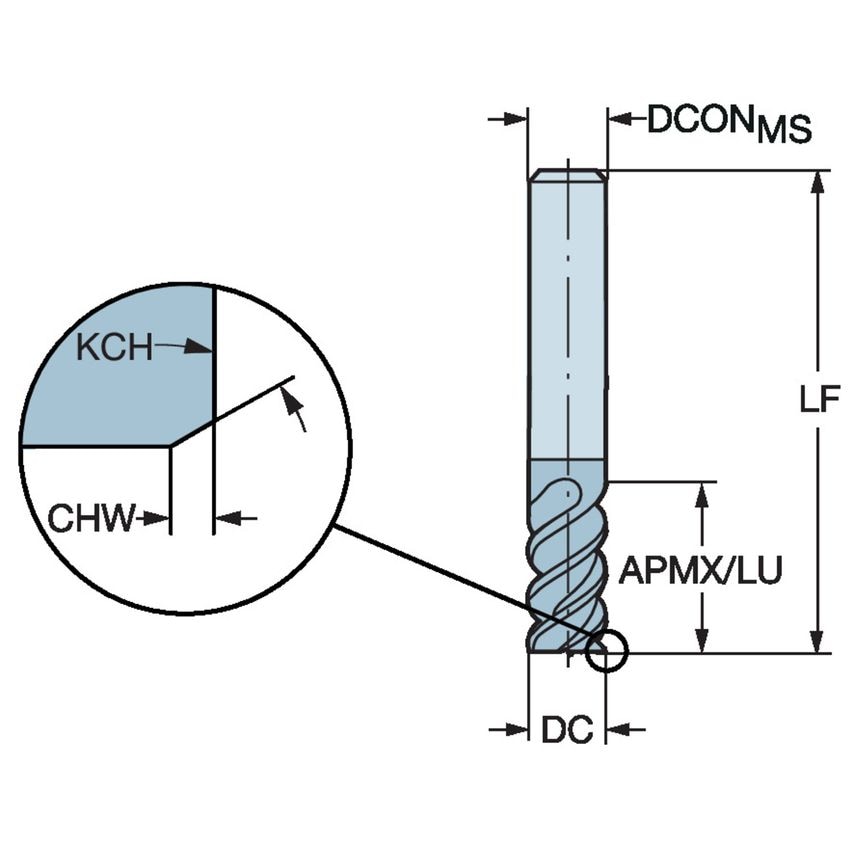

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Basic Standard Group | DIN 6527 L |
| Weight | 0.46kg |
| Maximum Cutting Depth | 38mm |
| Maximum Ramping Angle | 2\u00b0 |
| Usable Length | 38mm |
| Material | Solid Carbide |
| Milling Application | Finishing |
| Coating Type | TiAlN |
| Center Cutting Capability | No |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Diameter | 20mm |
| Rotational Speed Maximum | 80000 1/min |
| CoroPak | 7.1 |
| Unit Measured | Metric |
| MFR Part No. | 11527611 |
| Product Type | End Mills |
| Finish/Coating | TiAlN |
| Through Hole Function Property | Yes |
| Grade | 1610 |
| Connection Diameter | 63mm |
| Functional Length | 104mm |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Standards Met | DIN 6527 L |
| Maximum Depth of Cut | 38mm |
