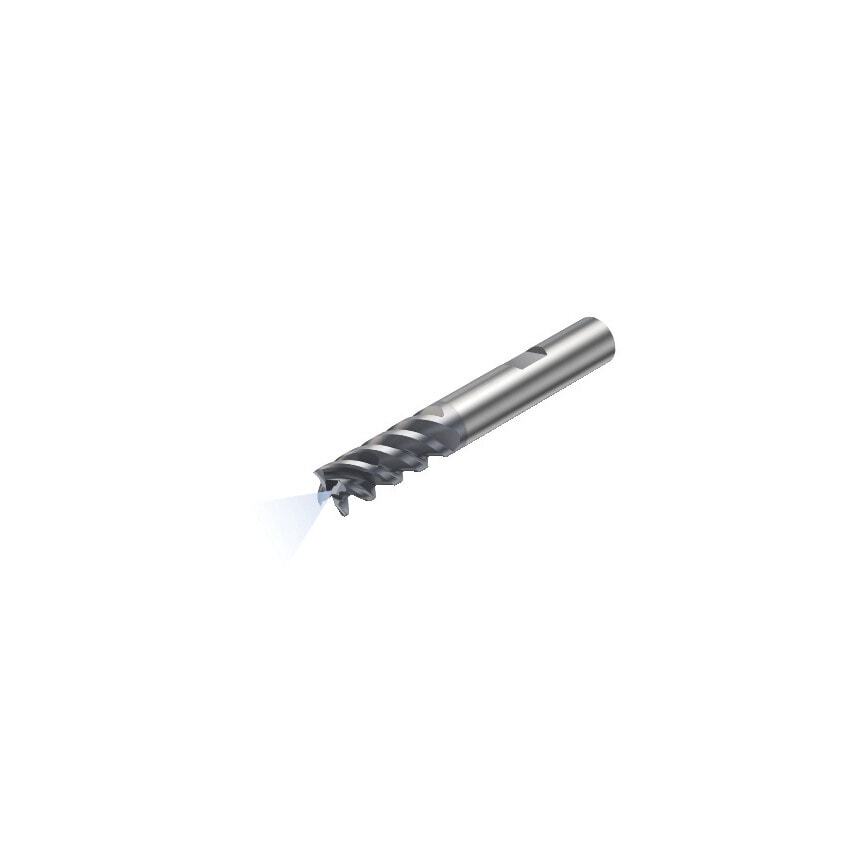

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 5\u00b0 |
| Grade | 1640 |
| Unit Measured | Metric |
| Shank Type | Weldon |
| MFR Part No. | 12329122 |
| Finish/Coating | TiAlN |
| Product Type | Solid Carbide Endmill |
| Connection Diameter | 8mm |
| Coating Type | TiAlN |
| Center Cutting Capability | No |
| Through Hole Function Property | Yes |
| Functional Length | 63mm |
| Usable Length | 19mm |
| Maximum Cutting Depth | 19mm |
| Basic Standard Group | Coromant |
| Coolant Entry Style | 1 |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 19mm |
| Material | Solid Carbide |
| Cutting Diameter | 8mm |
| Standards Met | COROMANT |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 8.1 |
| Rotational Speed Maximum | 80000 1/min |
