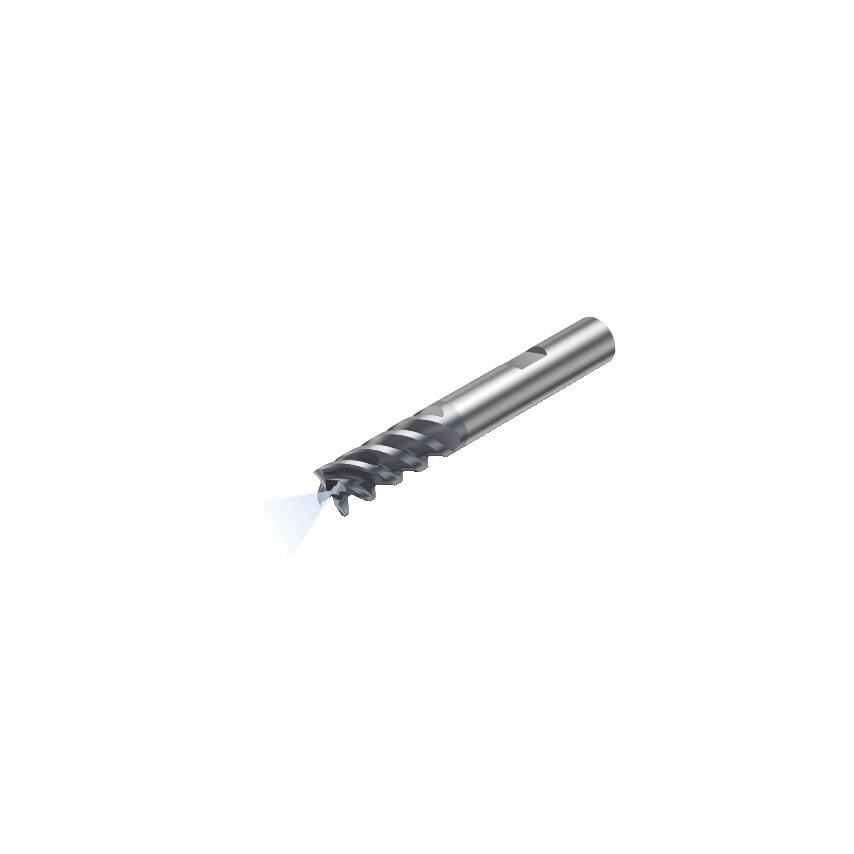

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Basic Standard Group | Coromant |
| Center Cutting Capability | No |
| Coating Type | TiAlN |
| CoroPak | 8.1 |
| Unit Measured | Metric |
| Maximum Cutting Depth | 38mm |
| Coating Process Type | PVD |
| Functional Length | 104mm |
| Through Hole Function Property | Yes |
| Maximum Ramping Angle | 5\u00b0 |
| Coolant Entry Style | 1 |
| Material | Solid Carbide |
| Rotational Speed Maximum | 80000 1/min |
| MFR Part No. | 12329166 |
| Usable Length | 38mm |
| Product Type | Solid Carbide Endmill |
| Maximum Depth of Cut | 38mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 0.41kg |
| Connection Diameter | 63mm |
| Cutting Diameter | 20mm |
| Finish/Coating | TiAlN |
| Standards Met | COROMANT |
| Shank Type | Weldon |
| Grade | 1640 |
