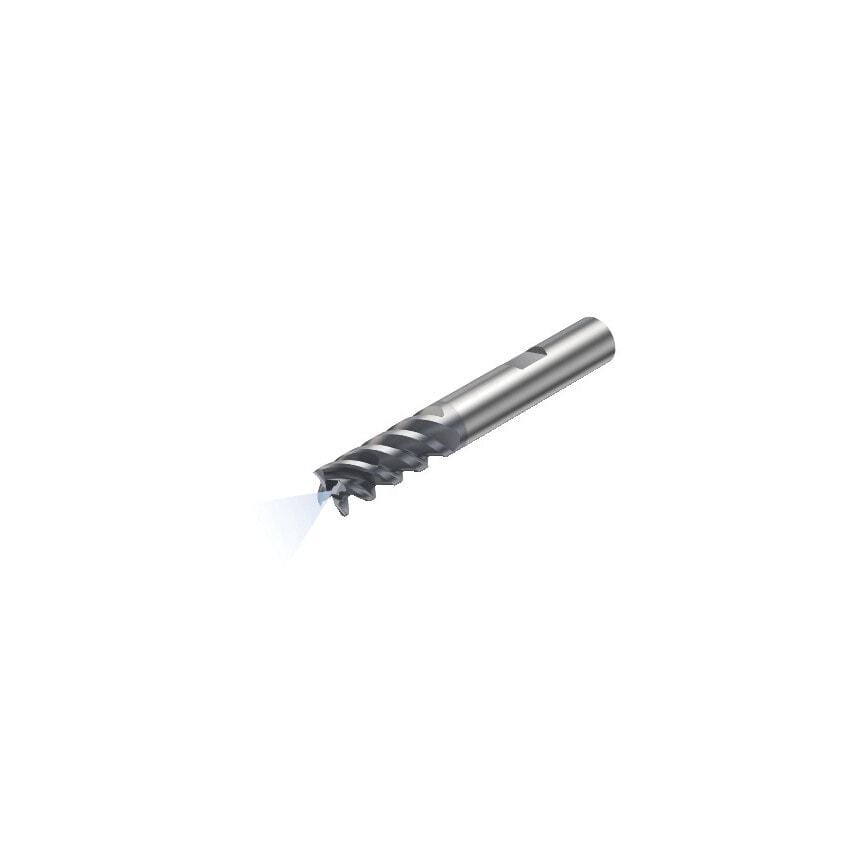

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Cutting Diameter | 10mm |
| Grade | 1640 |
| Maximum Cutting Depth | 22mm |
| Material | Solid Carbide |
| Product Type | Solid Carbide Endmill |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Basic Standard Group | Coromant |
| Shank Type | Weldon |
| Coating Type | TiAlN |
| Maximum Depth of Cut | 22mm |
| Maximum Ramping Angle | 5\u00b0 |
| MFR Part No. | 12329133 |
| CoroPak | 8.1 |
| Rotational Speed Maximum | 80000 1/min |
| Connection Diameter | 10mm |
| Finish/Coating | TiAlN |
| Unit Measured | Metric |
| Center Cutting Capability | No |
| Usable Length | 22mm |
| Coolant Entry Style | 1 |
| Functional Length | 72mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | COROMANT |
