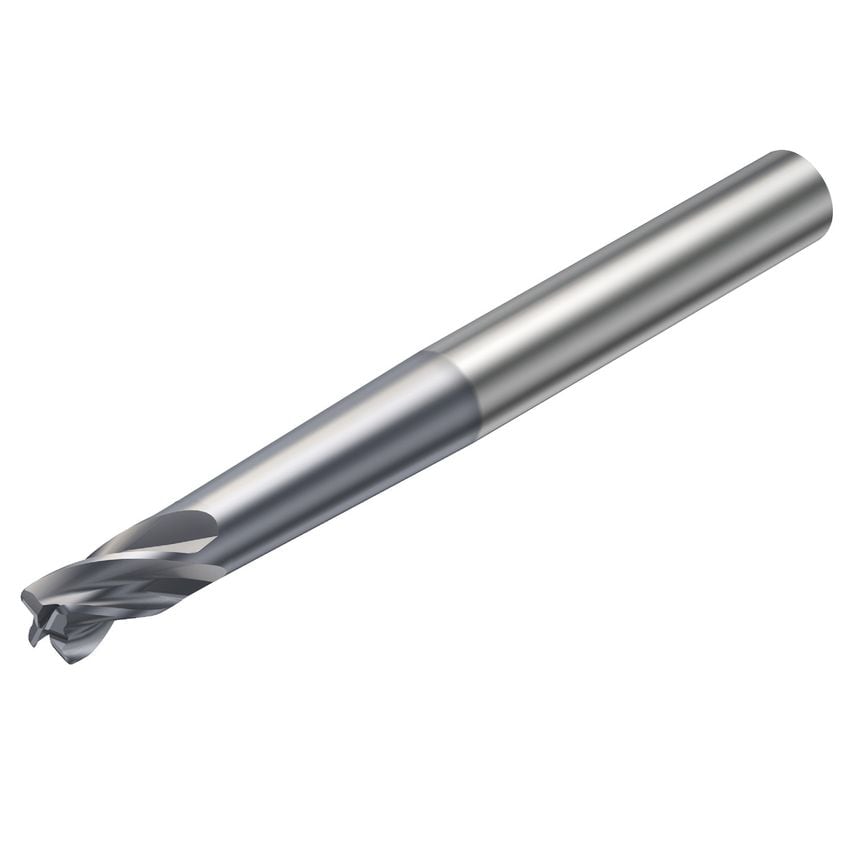

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

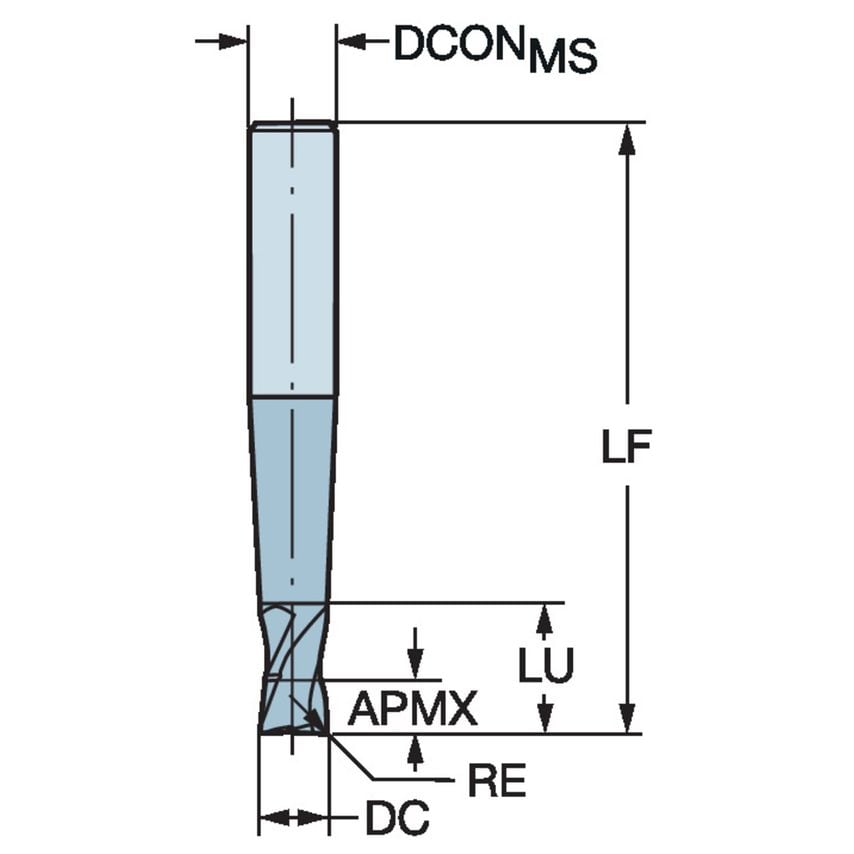

| Through Hole Function Property | Yes |
| Connection Diameter | 16mm |
| Functional Length | 150mm |
| Grade | 1610 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Corner Radius | 1mm |
| Cutting Diameter | 16mm |
| Basic Standard Group | Coromant |
| CoroPak | 7.1 |
| Maximum Ramping Angle | 2\u00b0 |
| Maximum Depth of Cut | 16mm |
| MFR Part No. | 11527331 |
| Center Cutting Capability | Yes |
| Maximum Cutting Depth | 16mm |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Weight | 444.9g |
| Coating Process Type | PVD |
| Usable Length | 16mm |
| Rotational Speed Maximum | 80000 1/min |
| Coating Type | TiAlN |
