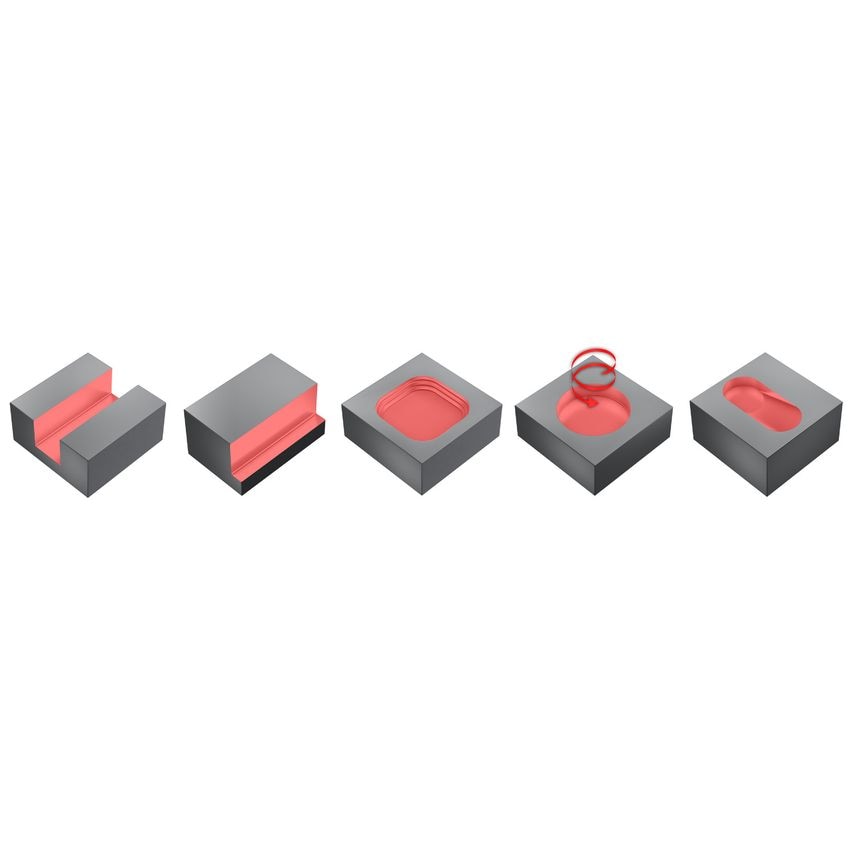

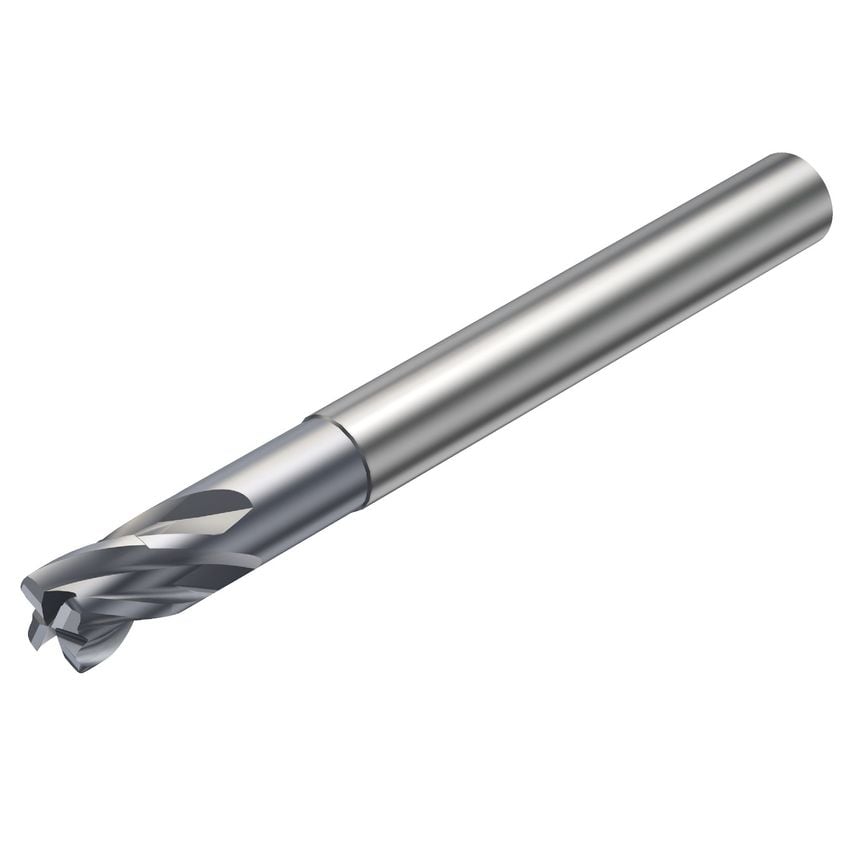

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

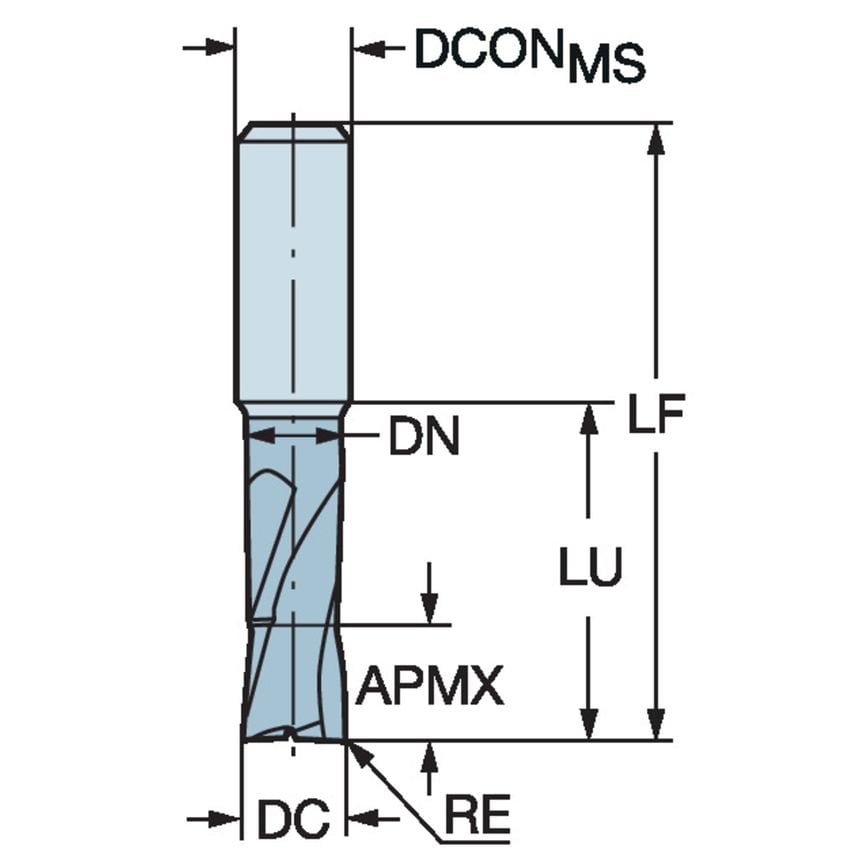

| Cutting Diameter | 5mm |
| Coating Type | TiAlN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coolant Entry Style | Without Coolant |
| CoroPak | 7.1 |
| Usable Length | 20mm |
| Coating Process Type | PVD |
| Body Diameter | 0.19in |
| Corner Radius | 0.5mm |
| Functional Length | 72mm |
| Unit Measured | Metric |
| Maximum Ramping Angle | 2\u00b0 |
| Connection Diameter | 6mm |
| Center Cutting Capability | Yes |
| MFR Part No. | 11527051 |
| Through Hole Function Property | Yes |
| Basic Standard Group | Coromant |
| Maximum Depth of Cut | 5mm |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Cutting Depth | 5mm |
| Body Half Taper Angle | 30\u00b0 |
| Grade | 1610 |
