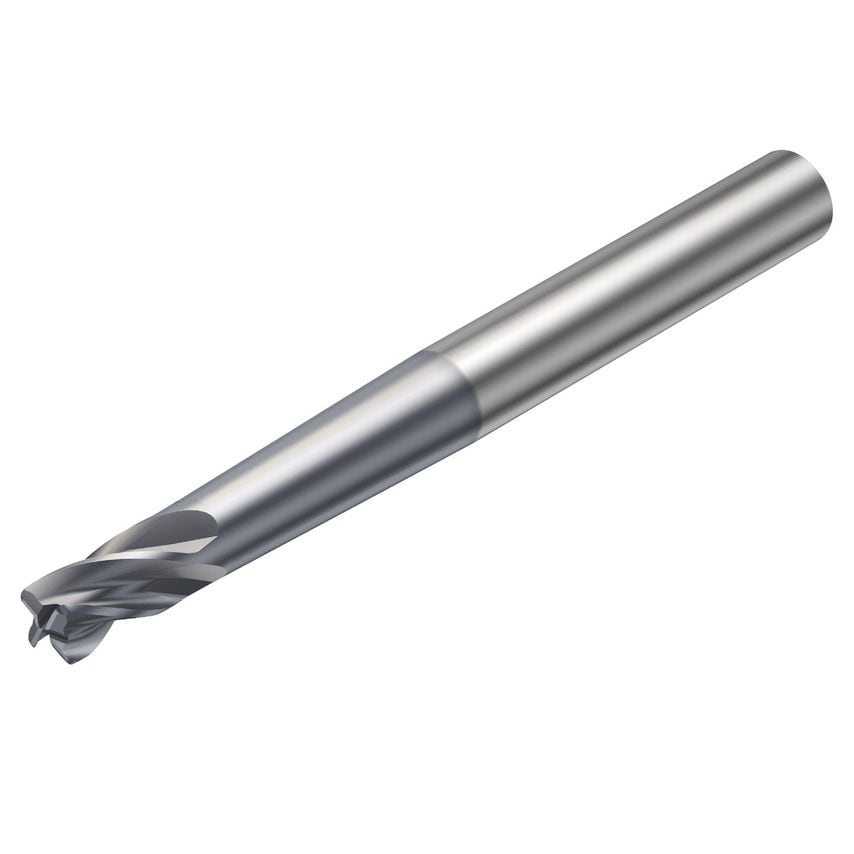

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Unit Measured | Metric |
| Basic Standard Group | Coromant |
| Center Cutting Capability | Yes |
| MFR Part No. | 11527224 |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| Rotational Speed Maximum | 80000 1/min |
| CoroPak | 7.1 |

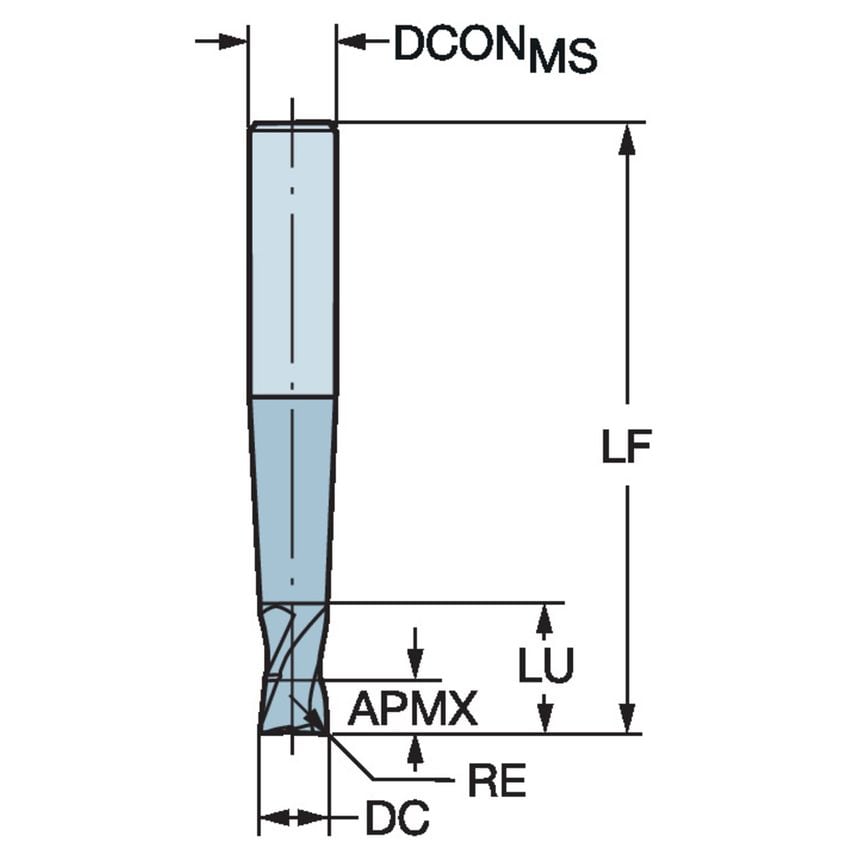

| Connection Diameter | 22mm |
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 100mm |
| Usable Length | 10mm |
| Corner Radius | 1mm |
| Coating Type | TiAlN |
| Cutting Diameter | 8mm |
| Maximum Cutting Depth | 8mm |
| Maximum Ramping Angle | 2\u00b0 |
| Grade | 1610 |
| Maximum Depth of Cut | 8mm |
| Weight | 0.11kg |
