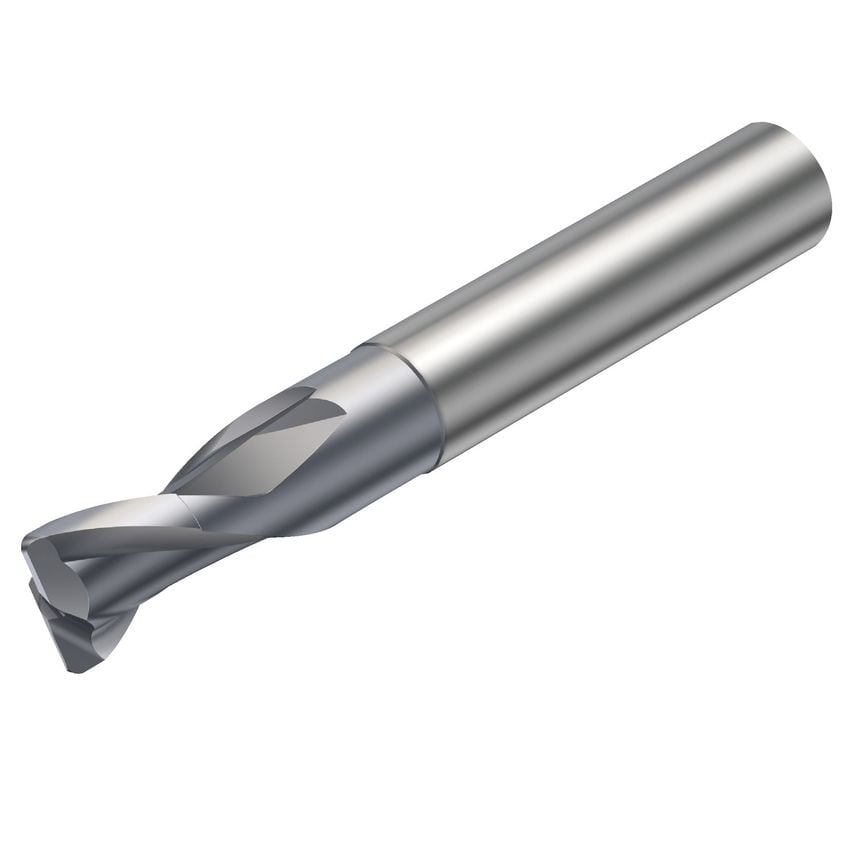

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Center Cutting Capability | Yes |
| Unit Measured | Metric |
| MFR Part No. | 11526804 |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Cutting Depth | 0.47in |
| Grade | 1610 |
| Basic Standard Group | Coromant |
| Corner Radius | 1.5mm |
| Connection Diameter | 32mm |
| Maximum Depth of Cut | 12mm |
| CoroPak | 7.1 |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 2\u00b0 |
| Weight | 0.14kg |
| Through Hole Function Property | Yes |
| Functional Length | 83mm |
| Cutting Diameter | 12mm |
| Coating Type | TiAlN |
| Usable Length | 36mm |
| Coolant Entry Style | Without Coolant | Without Coolant |
| ISO Cutting Tool Material | Coated WC or Cermet |
