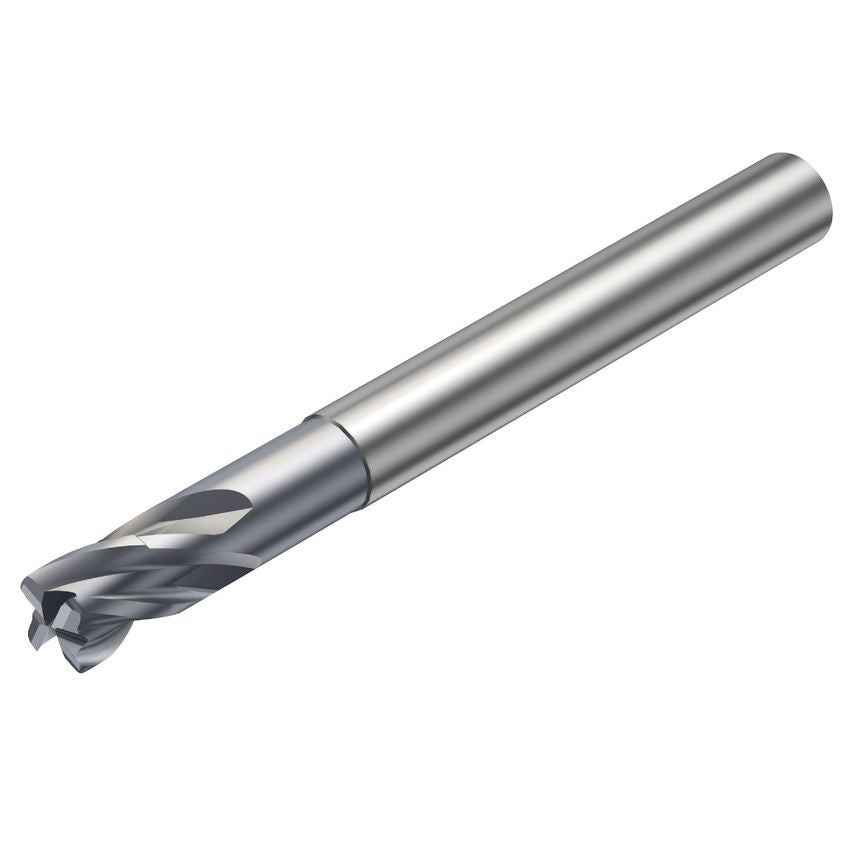

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

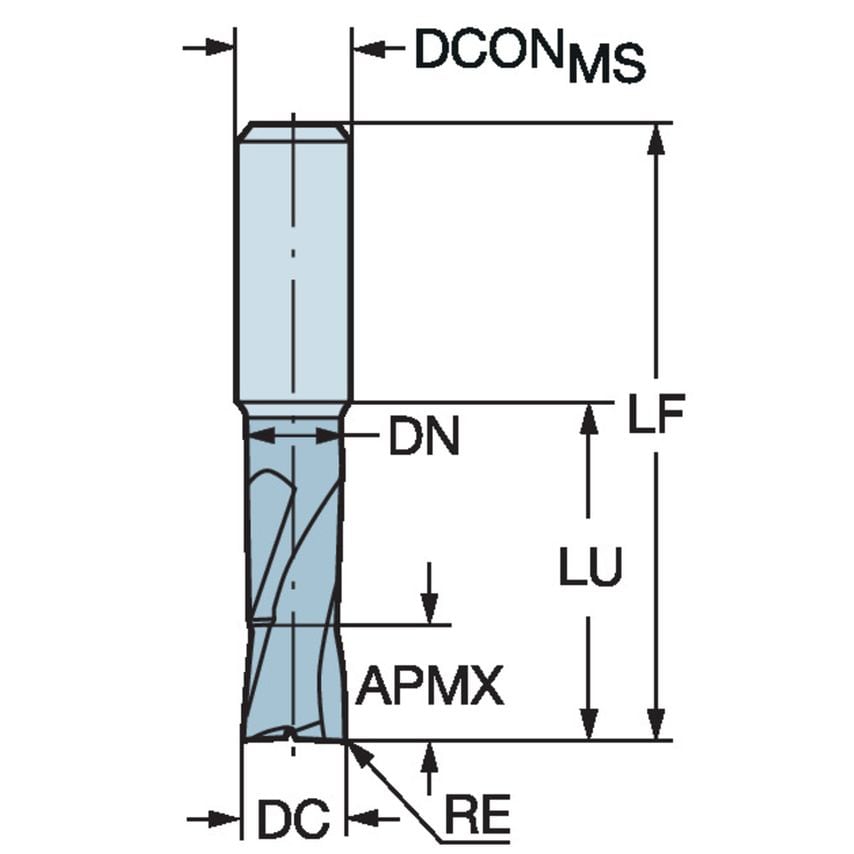

| Cutting Diameter | 4mm |
| Body Half Taper Angle | 30\u00b0 |
| Basic Standard Group | Coromant |
| Functional Length | 72mm |
| Usable Length | 20mm |
| Maximum Ramping Angle | 2\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Connection Diameter | 0.8mm |
| Maximum Cutting Depth | 0.16in |
| Grade | 1610 |
| Coating Process Type | PVD |
| Body Diameter | 0.15in |
| CoroPak | 7.1 |
| Unit Measured | Metric |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 80000 1/min |
| MFR Part No. | 11527036 |
| Corner Radius | 0.4mm |
| Coating Type | TiAlN |
| Maximum Depth of Cut | 4mm |
| Coolant Entry Style | Without Coolant |
