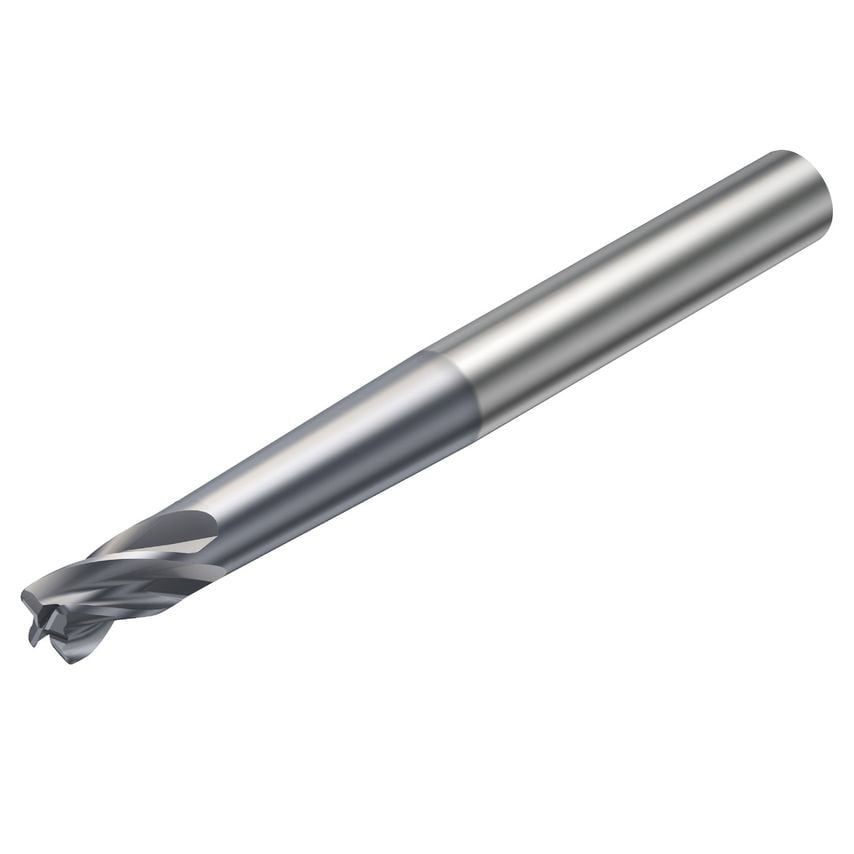

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Type | TiAlN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 125mm |
| Grade | 1610 |
| Body Half Taper Angle | 1\u00b0 |
| Coating Process Type | PVD |
| Body Diameter | 0.39in |
| Corner Radius | 1mm |
| Maximum Depth of Cut | 10mm |
| Maximum Ramping Angle | 2\u00b0 |
| CoroPak | 7.1 |
| Maximum Cutting Depth | 10mm |
| Coolant Entry Style | Without Coolant |
| Usable Length | 15mm |
| Cutting Diameter | 10mm |
| Center Cutting Capability | Yes |
| Weight | 0.2kg |
| Connection Diameter | 32mm |
| MFR Part No. | 11527246 |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Basic Standard Group | Coromant |
| Rotational Speed Maximum | 80000 1/min |
