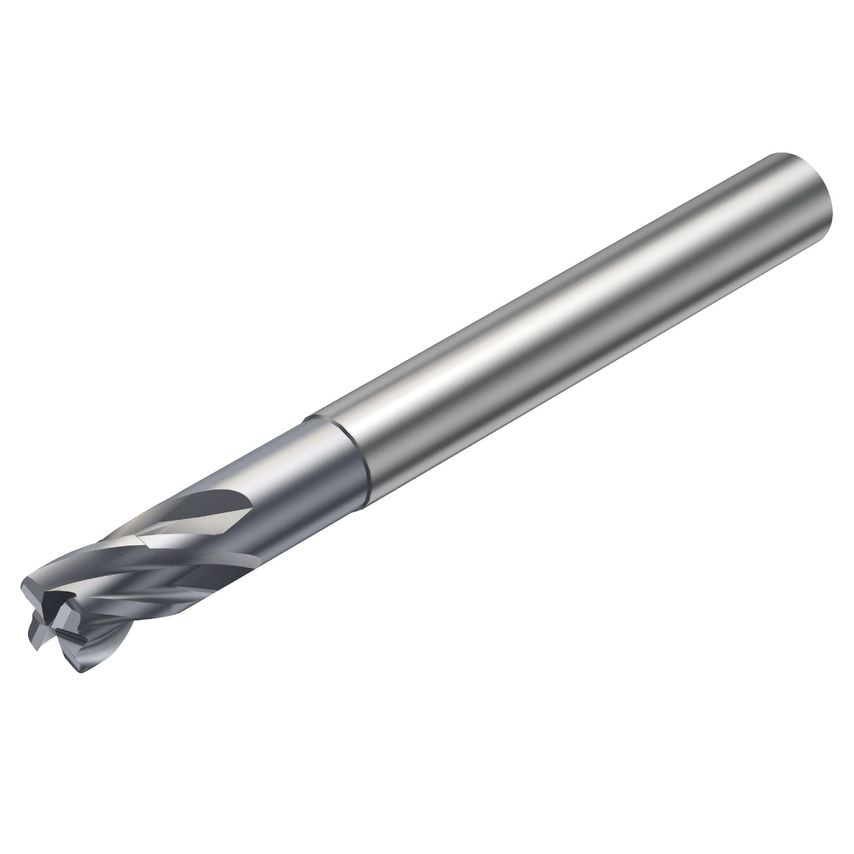

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

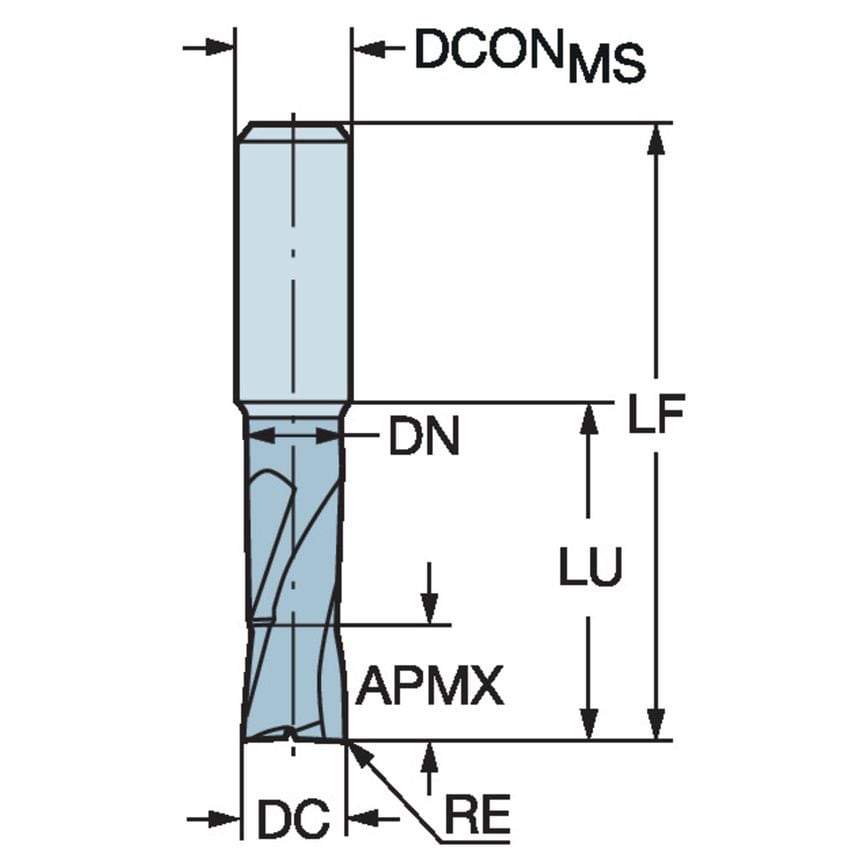

| Connection Diameter | 10mm |
| Functional Length | 100mm |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Maximum Cutting Depth | 10mm |
| Basic Standard Group | Coromant |
| Cutting Diameter | 10mm |
| Grade | 1610 |
| Coating Process Type | PVD |
| CoroPak | 7.1 |
| Corner Radius | 1mm |
| Coating Type | TiAlN |
| Maximum Ramping Angle | 2\u00b0 |
| Rotational Speed Maximum | 80000 1/min |
| MFR Part No. | 11527143 |
| Center Cutting Capability | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 10mm |
| Weight | 0.12kg |
| Usable Length | 35mm |
| Coolant Entry Style | Without Coolant |
