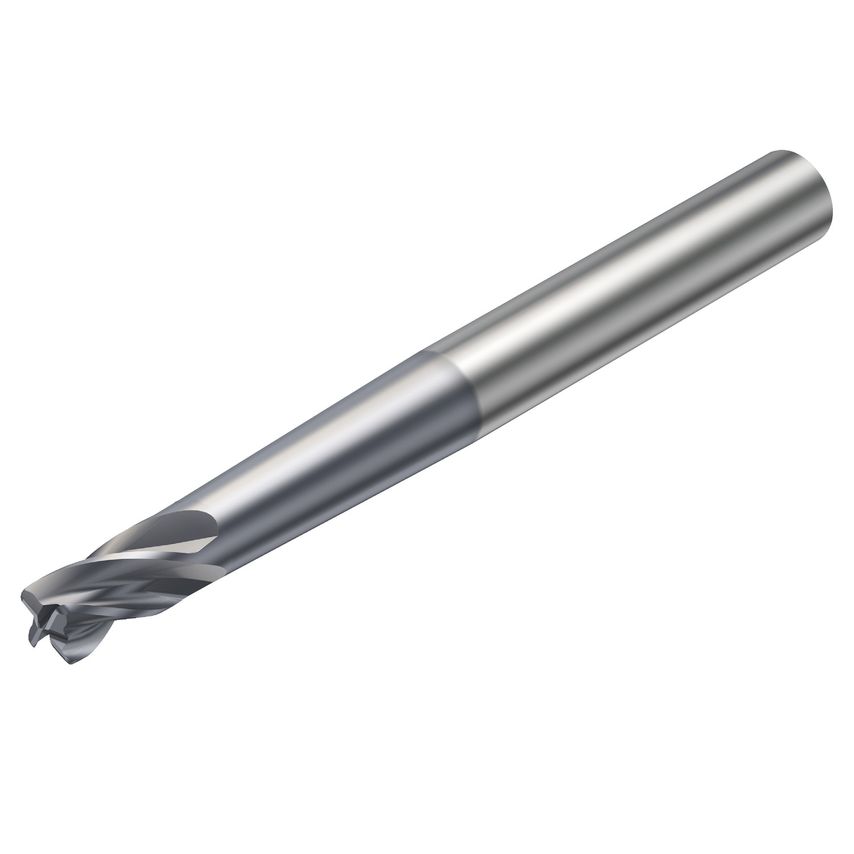

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

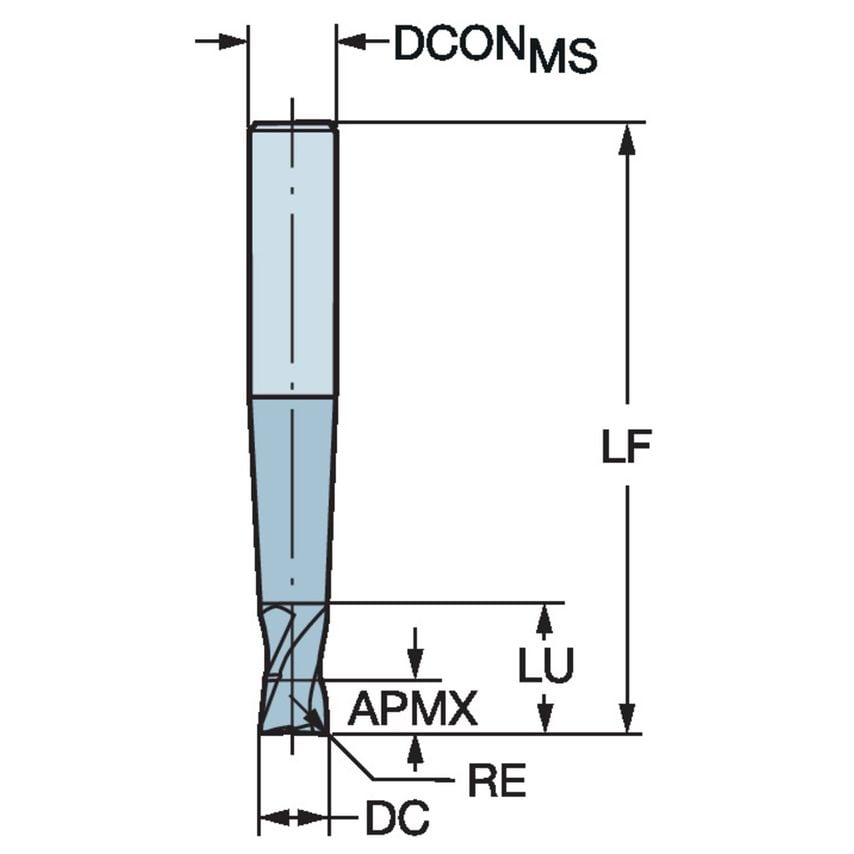

| Coolant Entry Style | Without Coolant |
| Rotational Speed Maximum | 36349 1/min |
| Usable Length | 7mm |
| Connection Diameter | 82.94mm |
| Through Hole Function Property | Yes |
| Maximum Ramping Angle | 2\u00b0 |
| Basic Standard Group | Coromant |
| MFR Part No. | 11526900 |
| Coating Type | TiAlN |
| Cutting Diameter | 6mm |
| Center Cutting Capability | Yes |
| Maximum Depth of Cut | 6mm |
| Grade | 1610 |
| Coating Process Type | PVD |
| Maximum Cutting Depth | 6mm |
| Weight | 74g |
| Functional Length | 100mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 7.1 |
| Corner Radius | 0.5mm |
| Unit Measured | Metric |
