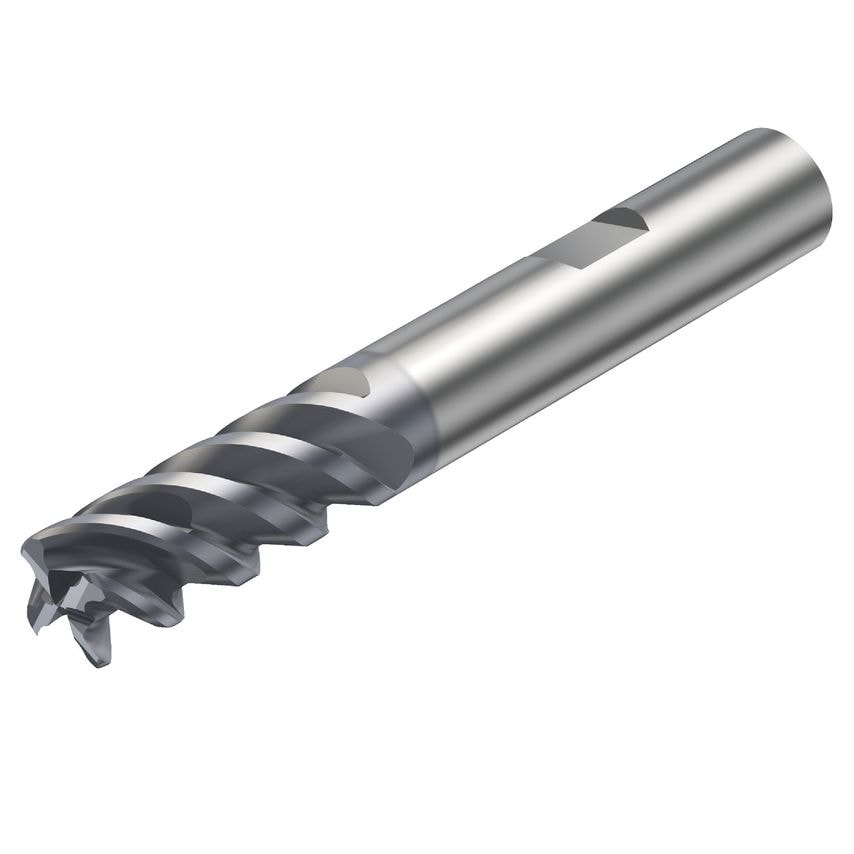

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

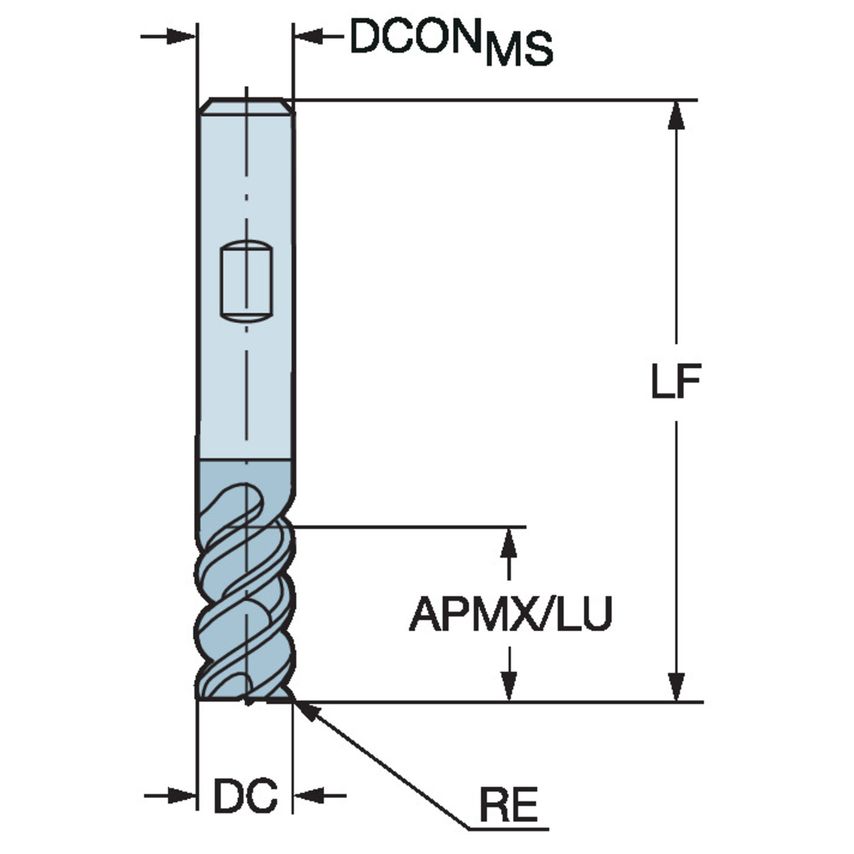

| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Corner Radius | 1mm |
| Coating Type | TiAlN |
| Material | Solid Carbide |
| Basic Standard Group | DIN 6527 L |
| Finish/Coating | TiAlN |
| Grade | 1620 |
| Maximum Ramping Angle | 5\u00b0 |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 13mm |
| Standards Met | DIN 6527 L |
| Shank Type | Weldon |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 4.1 |
| Maximum Depth of Cut | 13mm |
| Coating Process Type | PVD |
| Rotational Speed Maximum | 80000 1/min |
| Usable Length | 13mm |
| Center Cutting Capability | Yes |
| Connection Diameter | 6mm |
| Functional Length | 57mm |
| Cutting Diameter | 6mm |
| Product Type | Solid Carbide Endmill |
| MFR Part No. | 11769520 |
