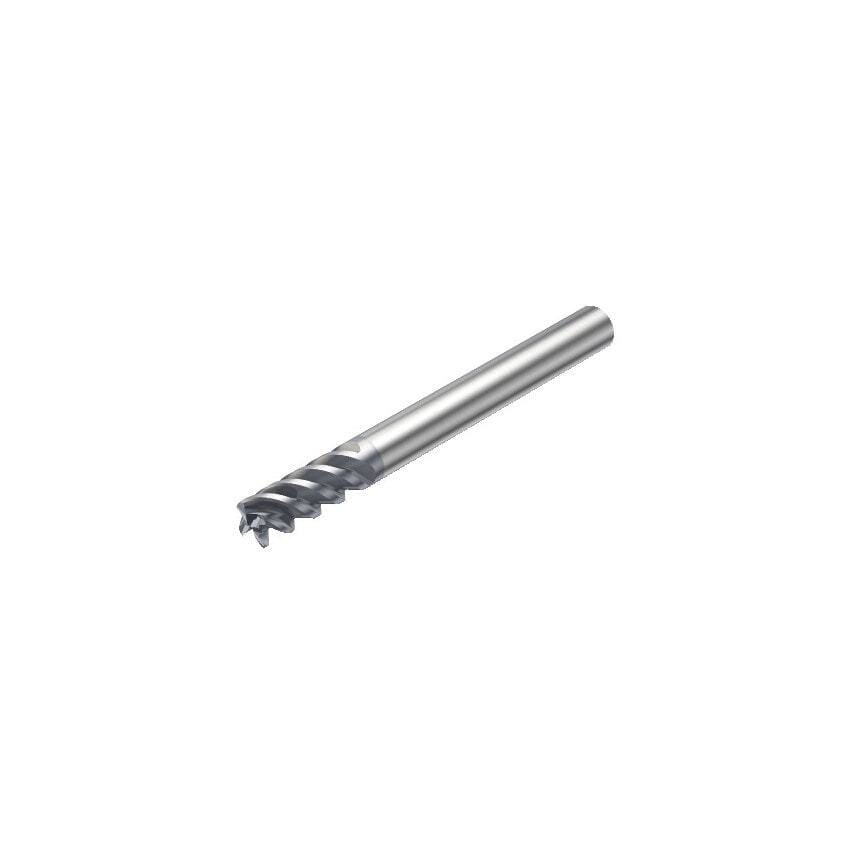

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 12302054 |
| Cutting Diameter | 20mm |
| Through Hole Function Property | Yes |
| CoroPak | 8.1 |
| Basic Standard Group | DIN 6527 L |
| Coating Type | TiAlN |
| Material | Solid Carbide |
| Grade | 1620 |
| Shank Type | Cylindrical |
| Corner Radius | 1mm |
| Rotational Speed Maximum | 80000 1/min |
| Connection Diameter | 63mm |
| Usable Length | 52mm |
| Unit Measured | Metric |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 38mm |
| Center Cutting Capability | Yes |
| Finish/Coating | TiAlN |
| Weight | 0.42kg |
| Coating Process Type | PVD |
| Standards Met | DIN 6527 L |
| Functional Length | 104mm |
| Product Type | Solid Carbide Endmill |
| Maximum Cutting Depth | 38mm |
| Maximum Ramping Angle | 5\u00b0 |
| Coolant Entry Style | Without Coolant |
