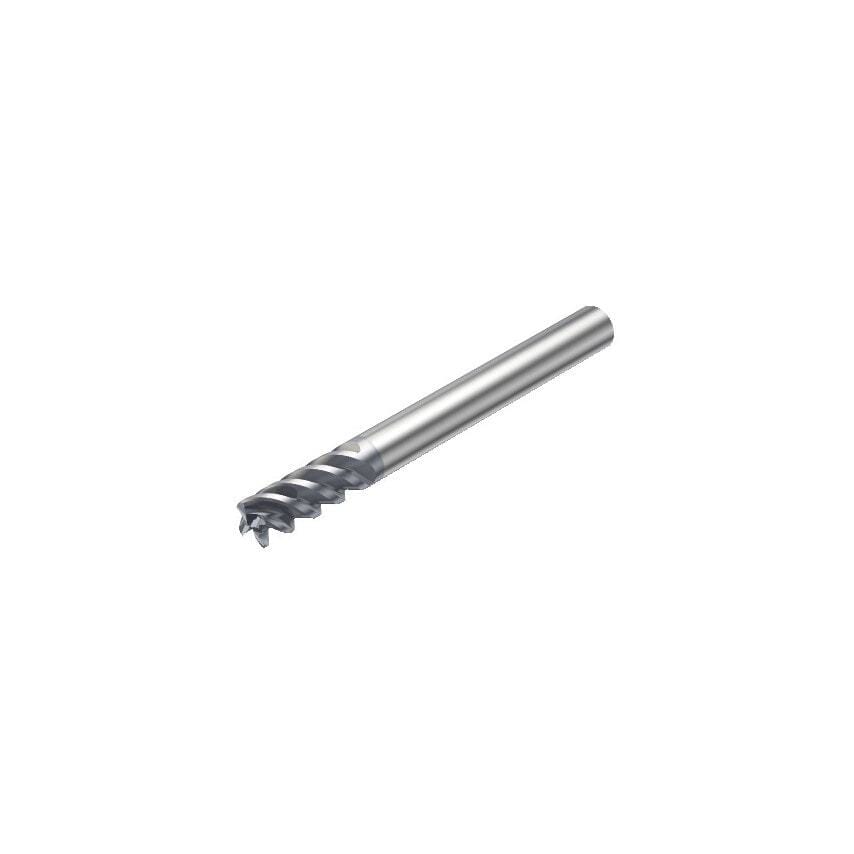

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Cutting Diameter | 20mm |
| MFR Part No. | 12302091 |
| Basic Standard Group | DIN 6527 L |
| Maximum Depth of Cut | 38mm |
| Coolant Entry Style | Without Coolant |
| Coating Type | TiAlN |
| Weight | 0.42kg |
| Grade | 1620 |
| Material | Solid Carbide |
| CoroPak | 8.1 |
| Standards Met | DIN 6527 L |
| Product Type | Solid Carbide Endmill |
| Shank Type | Cylindrical |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Through Hole Function Property | Yes |
| Usable Length | 52mm |
| Functional Length | 104mm |
| Rotational Speed Maximum | 80000 1/min |
| Unit Measured | Metric |
| Center Cutting Capability | Yes |
| Coating Process Type | PVD |
| Corner Radius | 4mm |
| Finish/Coating | PVD |
| Maximum Ramping Angle | 5\u00b0 |
| Connection Diameter | 20mm |
| Maximum Cutting Depth | 38mm |
