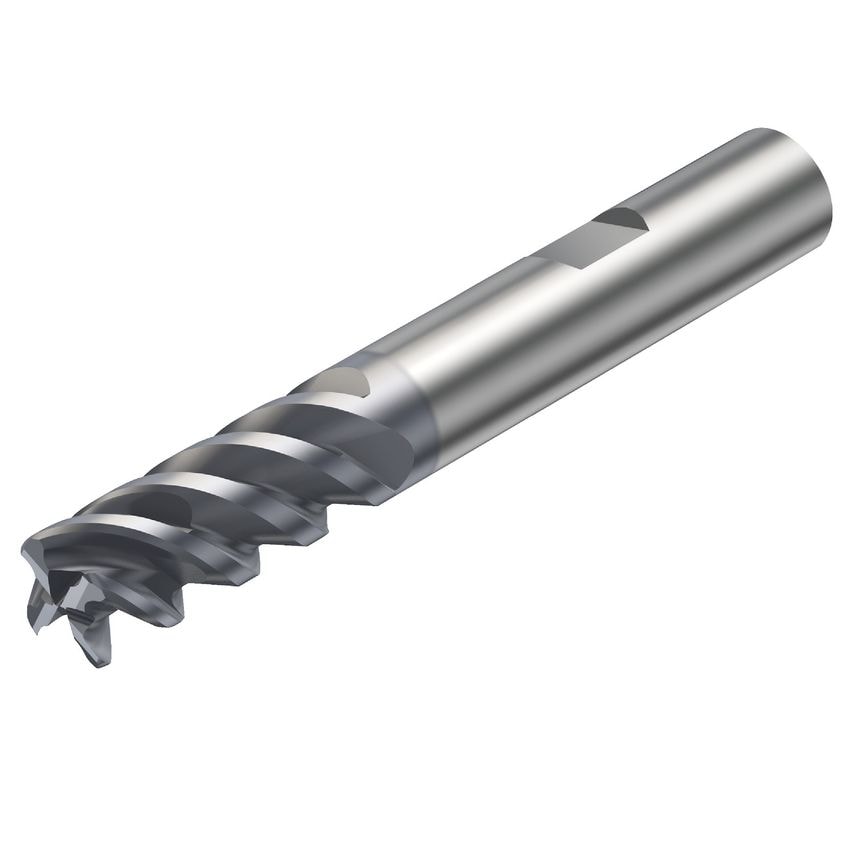

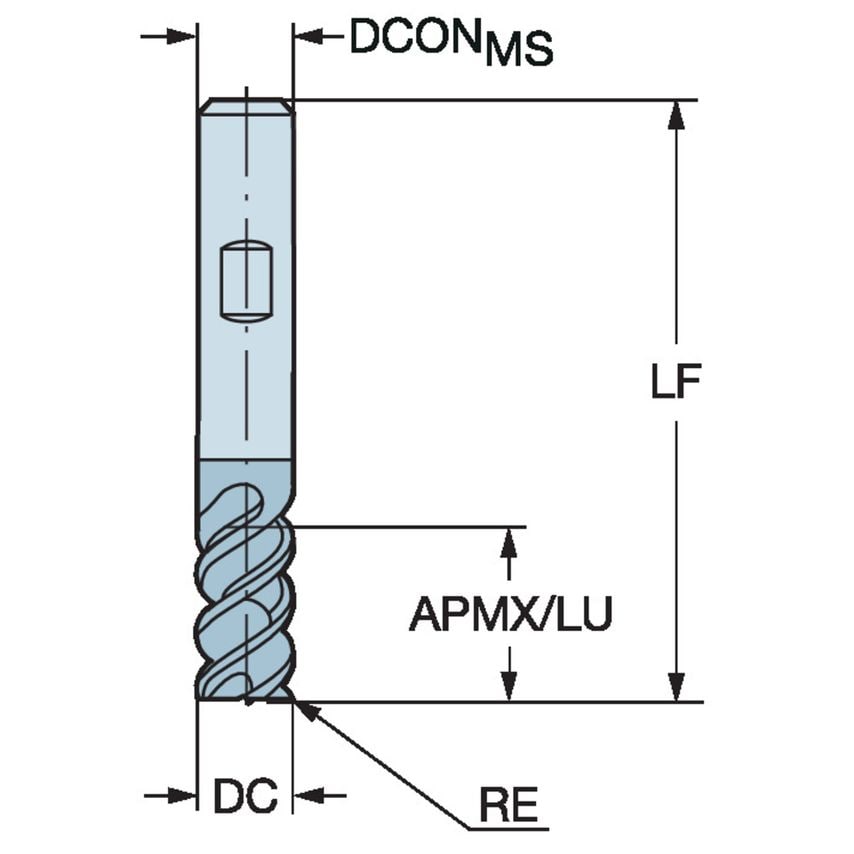

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 38mm |
| Coating Process Type | PVD |
| Shank Type | Weldon |
| Standards Met | DIN 6527 L |
| CoroPak | 4.1 |
| Corner Radius | 4mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Diameter | 20mm |
| Functional Length | 104mm |
| Rotational Speed Maximum | 80000 1/min |
| Weight | 0.42kg |
| Product Type | Solid Carbide Endmill |
| Basic Standard Group | DIN 6527 L |
| Usable Length | 38mm |
| Unit Measured | Metric |
| Material | Solid Carbide |
| Maximum Ramping Angle | 5\u00b0 |
| Maximum Cutting Depth | 38mm |
| Connection Diameter | 20mm |
| MFR Part No. | 11769601 |
| Finish/Coating | TiAlN |
| Grade | 1620 |
| Coolant Entry Style | Without Coolant |
| Coating Type | TiAlN |
| Center Cutting Capability | Yes |
