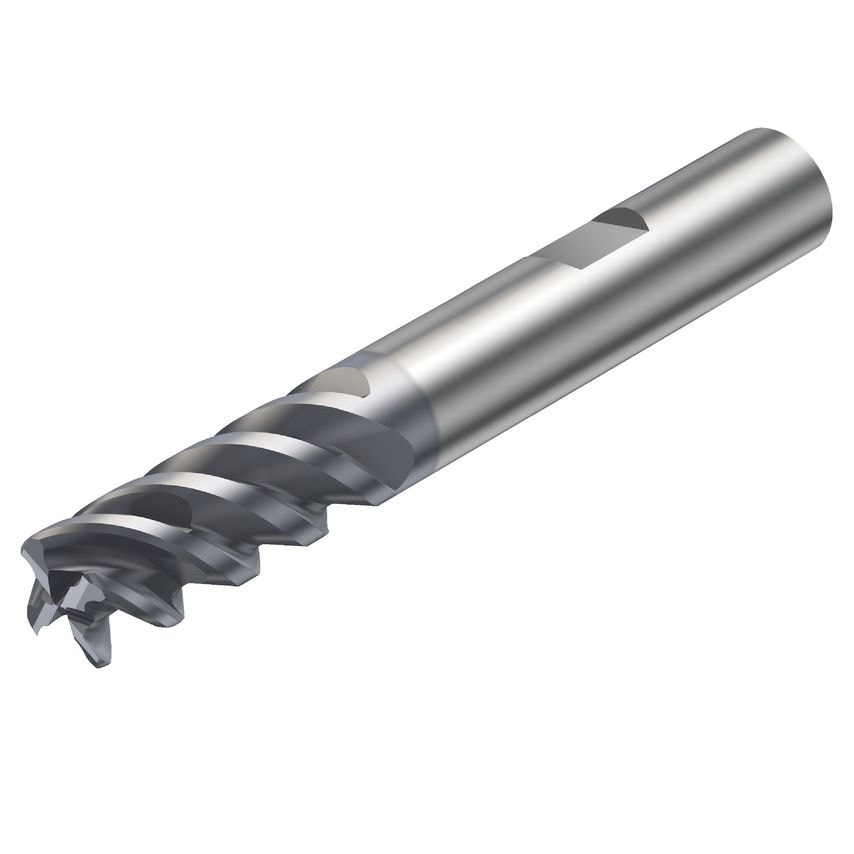

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 5\u00b0 |
| Standards Met | DIN 6527 L |
| Usable Length | 32mm |
| Through Hole Function Property | Yes |
| Cutting Diameter | 16mm |
| Maximum Depth of Cut | 32mm |
| Shank Type | Weldon |
| MFR Part No. | 11557674 |
| Maximum Cutting Depth | 32mm |
| CoroPak | 3.1 |
| Material | Solid Carbide |
| Basic Standard Group | DIN 6527 L |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 40mm |
| Corner Radius | 4mm |
| Grade | 1630 |
| Finish/Coating | TiAlN |
| Coating Process Type | PVD |
| Weight | 0.25kg |
| Center Cutting Capability | Yes |
| Coating Type | TiAlN |
| Functional Length | 92mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Rotational Speed Maximum | 80000 1/min |
| Product Type | Solid Carbide Endmill |
