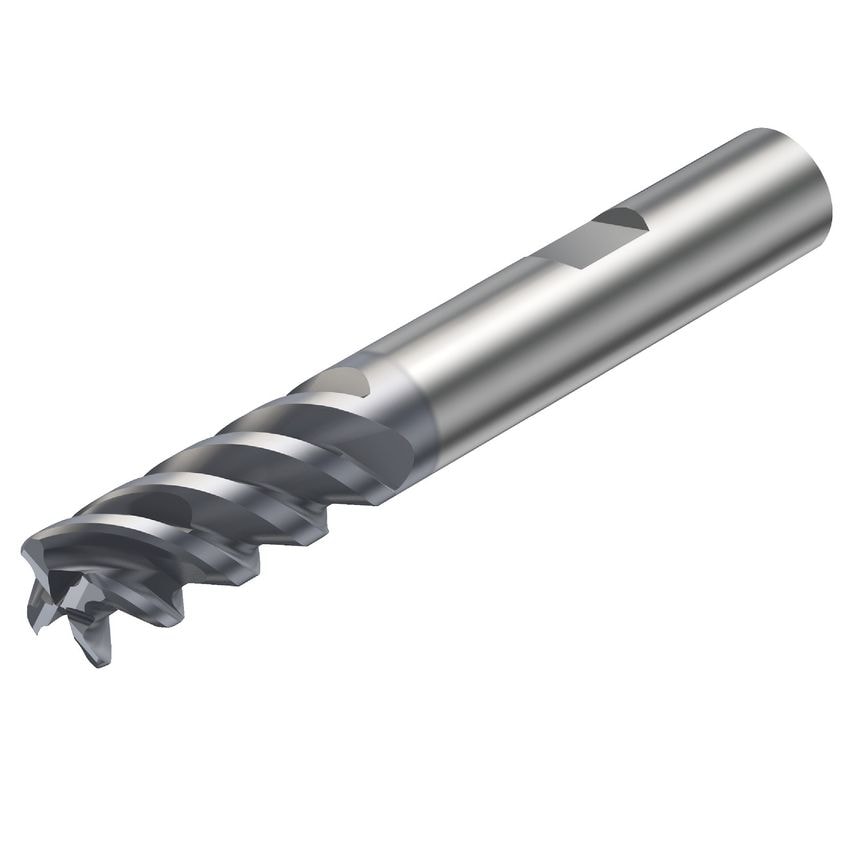

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| CoroPak | 4.1 |
| Center Cutting Capability | Yes |
| Standards Met | DIN 6527 L |
| Maximum Ramping Angle | 5\u00b0 |
| Connection Diameter | 16mm |
| Shank Type | Weldon |
| Corner Radius | 4mm |
| MFR Part No. | 11769590 |
| Product Type | Solid Carbide Endmill |
| Functional Length | 92mm |
| Grade | 1620 |
| Weight | 0.25g |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Basic Standard Group | DIN 6527 L |
| Coating Process Type | PVD |
| Maximum Cutting Depth | 32mm |
| Maximum Depth of Cut | 32mm |
| Cutting Diameter | 16mm |
| Material | Carbide |
| Usable Length | 32mm |
| Rotational Speed Maximum | 80000 1/min |
| Coolant Entry Style | Without Coolant |
| Finish/Coating | TiAlN |
| Coating Type | TiAlN |
| Unit Measured | Metric |
