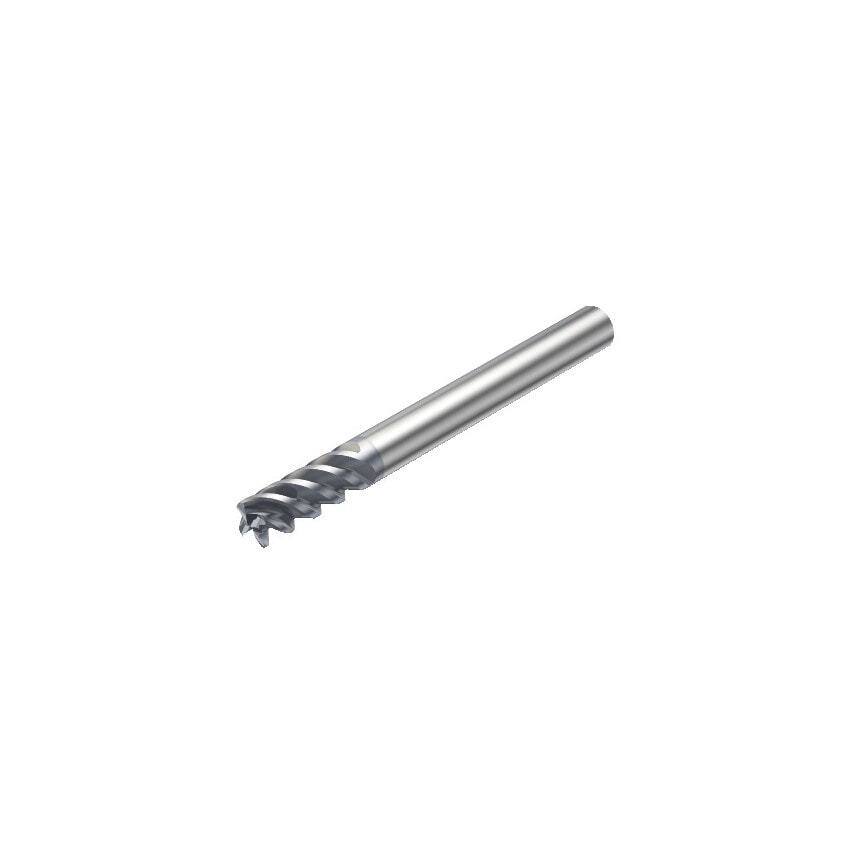

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 12301962 |
| Weight | 0.13kg |
| Through Hole Function Property | Yes |
| Material | Solid Carbide |
| Coating Type | TiAlN |
| Usable Length | 36mm |
| Unit Measured | Metric |
| Shank Type | Cylindrical |
| Coolant Entry Style | Without Coolant |
| Grade | 1620 |
| Corner Radius | 1.5mm |
| Basic Standard Group | DIN 6527 L |
| Cutting Diameter | 12mm |
| Standards Met | DIN 6527 L |
| CoroPak | 8.1 |
| Rotational Speed Maximum | 80000 1/min |
| Center Cutting Capability | Yes |
| Finish/Coating | TiAlN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Ramping Angle | 5\u00b0 |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 26mm |
| Maximum Cutting Depth | 26mm |
| Connection Diameter | 12mm |
| Functional Length | 83mm |
| Product Type | Solid Carbide Endmill |
