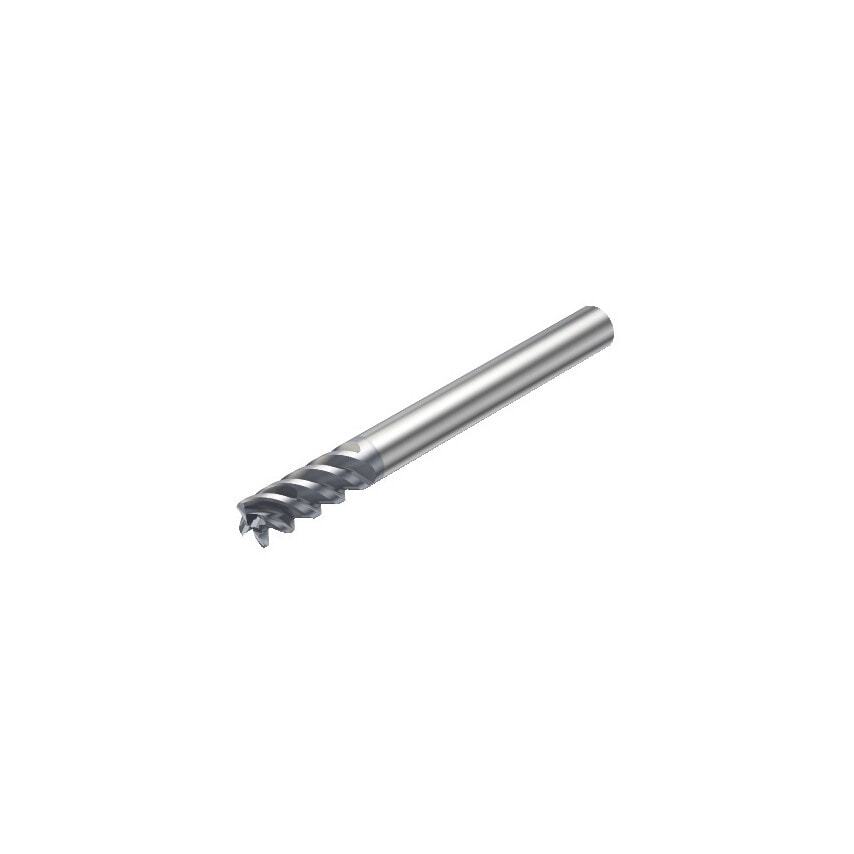

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Corner Radius | 2.5mm |
| Maximum Ramping Angle | 5\u00b0 |
| Shank Type | Cylindrical |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Basic Standard Group | DIN 6527 L |
| CoroPak | 8.1 |
| Coating Type | TiAlN |
| Center Cutting Capability | Yes |
| Rotational Speed Maximum | 80000 1/min |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 12mm |
| Connection Diameter | 12mm |
| Maximum Cutting Depth | 26mm |
| Material | Solid Carbide |
| Functional Length | 83mm |
| Finish/Coating | TiAlN |
| Maximum Depth of Cut | 26mm |
| Product Type | Solid Carbide Endmill |
| Grade | 1620 |
| Usable Length | 36mm |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Weight | 0.13kg |
| Standards Met | DIN 6527 L |
| MFR Part No. | 12301984 |
